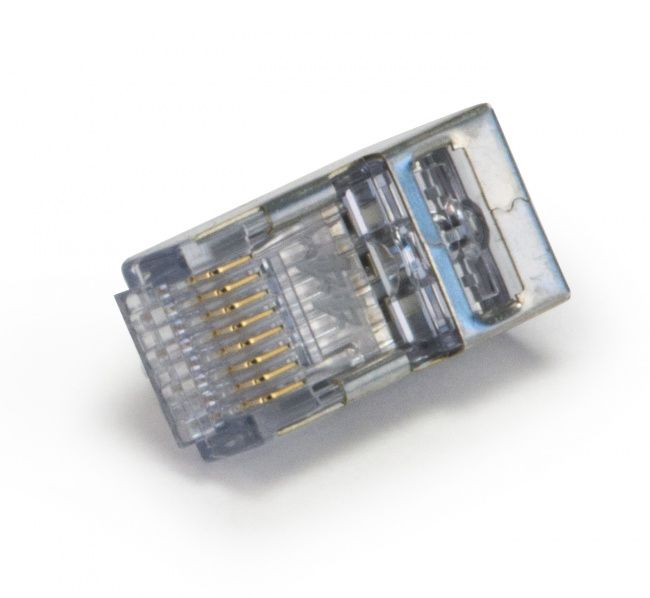

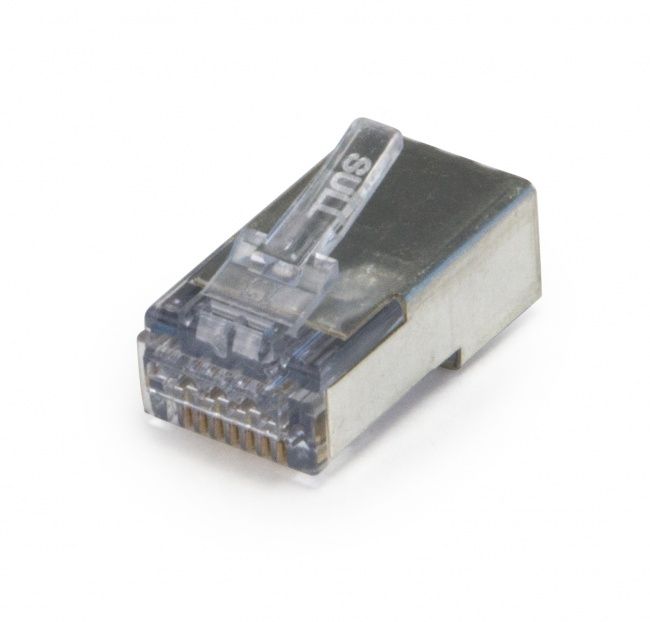

Platinum Tools 105027 ezEX44 Shielded RJ45 Internal Ground Connectors, 100 Per Bag

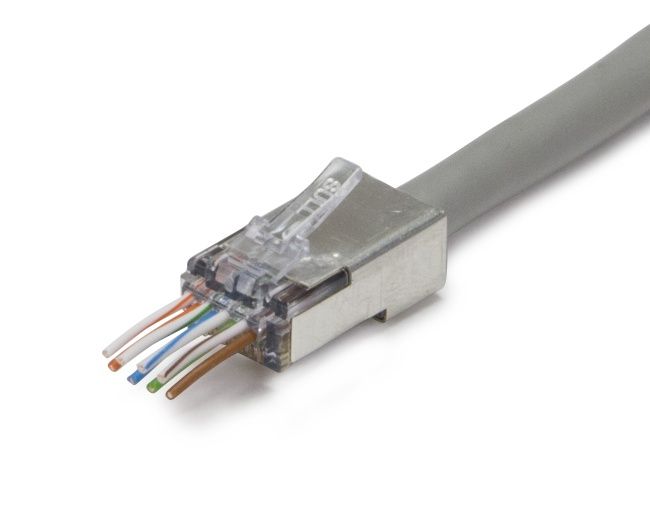

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Features

• Hi-Lo stagger: isolates each conductor for improved performance and reliability.
• Simple design: features a one piece / pass through design eliminating the need for additional bars or liners, streamlining installation.
• Shielded compliance: fully compliant with 5e / 6 / 6A standards ensuring enhanced data integrity.
• Insulation Diameter: accommodates conductor sizes ranging from 0.039” – 0.044” (1.0 – 1.12mm) for versatility.
• Max Outer Diameter: fits cables with an outer diameter of up to 0.280” (7.1mm), perfect for thicker cables.
• Wire gauge compatibility: works with solid or stranded conductors from 24-22 AWG, providing adaptability for various setups.
• Regulatory compliance: certified TAA, TIA, RoHS, UL & FCC compliant ensuring quality and safety standards.

Platinum Tools 105027 ezEX44 Shielded RJ45 Internal Ground Connectors Specifications
