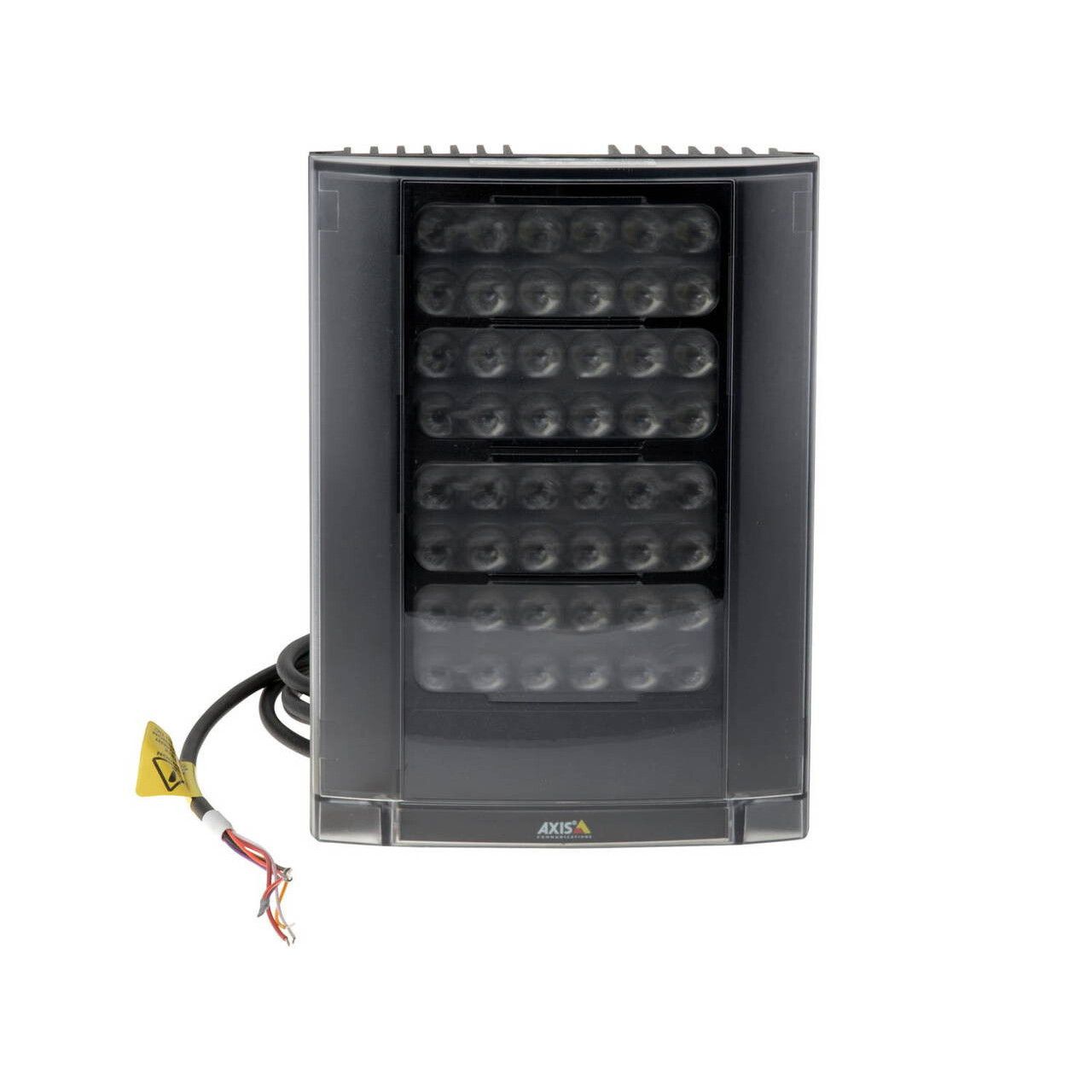

Axis 01214-001 T90D40 IR-LED Illuminator
SKU
01214-001
Model No
T90D40 IR-LED
$1,310.19
Product Highlights
- Low power consumption
- Flexible angle of illumination
- Easy setup by remote control
- Various mounting options
Speak to an expert
Axis 01214-001 T90D40 IR-LED Illuminator Features
The 01214-001 from Axis is an IR LED illuminator for network cameras. Included interchangeable diverging lenses providing 10°-140° beam angles. Beam distance ranges 105m to 500m (345ft to 1640ft). Made of IK09 impact-resistant aluminium and polycarbonate. IP66 and NEMA 4X ratings. Operating temperature -50°C to 50°C (-58 °F to 122 °F). 12/24 V DC or AC input.
Features
- Low power consumption: Helps in reducing energy costs while maintaining performance efficiency.
- Flexible angle of illumination: Allows for customization of lighting according to specific surveillance needs.
- Easy setup by remote control: Simplifies installation process, reducing time and effort needed.
- Various mounting options: Provides versatility, enabling installation in different environments and applications.
Axis 01214-001 T90D40 IR-LED Illuminator Specifications
| Model | Axis 01214-001 T90D40 |
| Beam Angle | 10°-140° (interchangeable lenses) |
| Beam Distance | 105m to 500m (345ft to 1640ft) |
| Material | IK09 impact-resistant aluminium and polycarbonate |
| Ingress Protection Rating | IP66 and NEMA 4X |
| Operating Temperature | -50°C to 50°C (-58 °F to 122 °F) |
| Power Supply | 12/24 V DC or AC input |
SKU  | 01214-001 |
|---|---|
| Manufacturer | Axis |
| Distance Range | 300-399 Feet, 400-499 Feet, 500-599 Feet, 600-699 Feet, 700-799 Feet, 800-899 Feet, 900-999 Feet, 1000+ Feet |
| Power Input | 24VDC, 24VAC |
| Angle Range | 101-110° Angle, 11-20° Angle, 121-130° Angle, 131-140° Angle, 81-90° Angle, 91-100° Angle, 0-10º Angle, 21-30° Angle, 31-40° Angle, 41-50° Angle, 51-60° Angle, 61-70° Angle, 71-80° Angle, 111-120º Angle |
Wavelength  | 850 NM |
