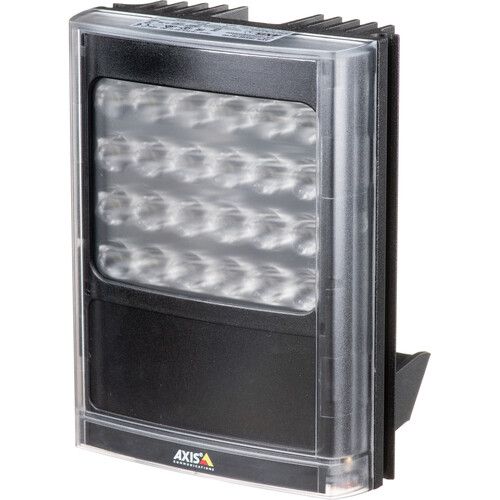

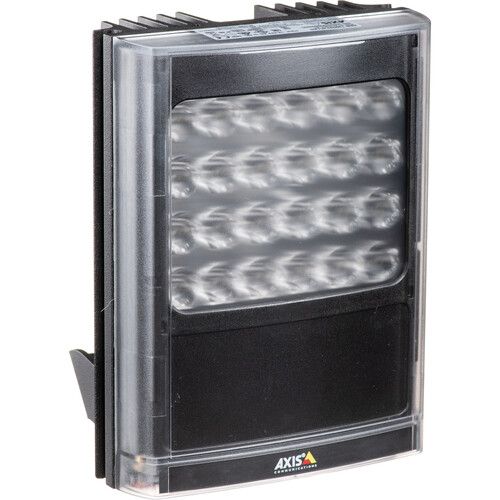

Axis 01212-001 T90D30 IR-LED Illuminator
SKU
01212-001
Model No
T90D30 IR-LED
$909.00
Product Highlights
- Low power consumption
- Flexible angle of illumination
- Easy setup by remote control
- Choice of AC/DC or PoE power input
- Various mounting options
Speak to an expert
The 01212-001 from Axis is an IR LED illuminator designed for network cameras, featuring interchangeable diverging lenses that offer various beam angles and extensive beam distance capabilities. Built to withstand harsh conditions with robust materials, and powered by versatile input options, this illuminator ensures high-performance nighttime monitoring, making it an ideal choice for security applications.
Axis 01212-001 T90D30 IR-LED Illuminator Features
- Low power consumption: Operates efficiently, reducing energy costs while extending the lifespan of the device.

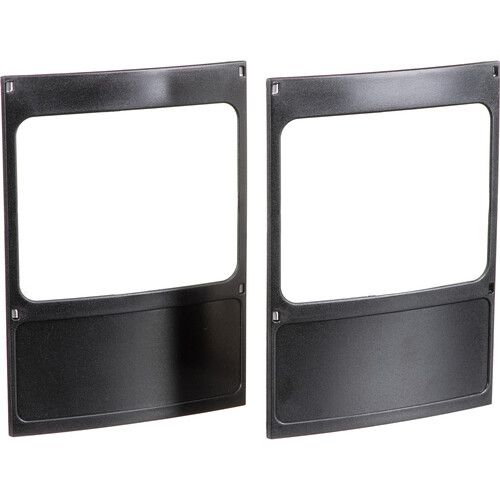

- Flexible angle of illumination: Interchangeable lenses provide beam angles of 10°, 35°, 60°, and 80° for tailored light distribution.
- Easy setup by remote control: Simplifies installation and adjustment, allowing users to configure settings from a distance.
- Choice of AC/DC or PoE power input: Offers versatile power options to suit various installation environments and preferences.

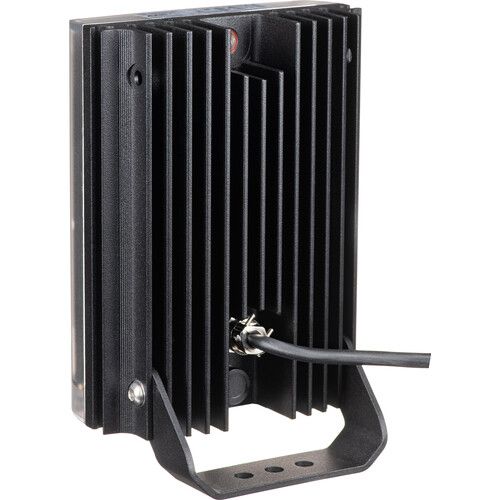

- Various mounting options: Provides flexibility in installation, ensuring optimal positioning for cameras.
Axis 01212-001 T90D30 Detailed Specifications
| Feature | Details |
|---|---|
| Beam Distance | 70m to 350m (230ft to 1150ft) |
| Material | IK09 impact-resistant aluminium and polycarbonate |
| Protection Rating | IP66 and NEMA 4X |
| Operating Temperature | -50°C to 50°C (-58 °F to 122 °F) |
| Input Voltage | 12/24 V DC or AC |
SKU  | 01212-001 |
|---|---|
| Manufacturer | Axis |
| Distance Range | 200-299 Feet, 300-399 Feet, 400-499 Feet, 500-599 Feet, 600-699 Feet, 700-799 Feet, 800-899 Feet, 900-999 Feet, 1000+ Feet |
| Power Input | 12-24VDC, 12-24VAC |
| Angle Range | 0-10º Angle, 31-40° Angle, 51-60° Angle, 71-80° Angle |
Wavelength  | 850 NM |
