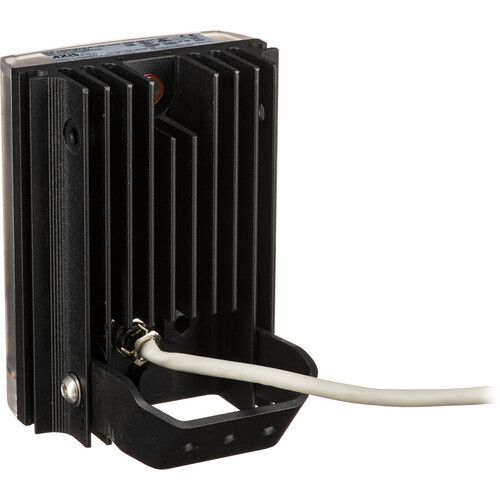

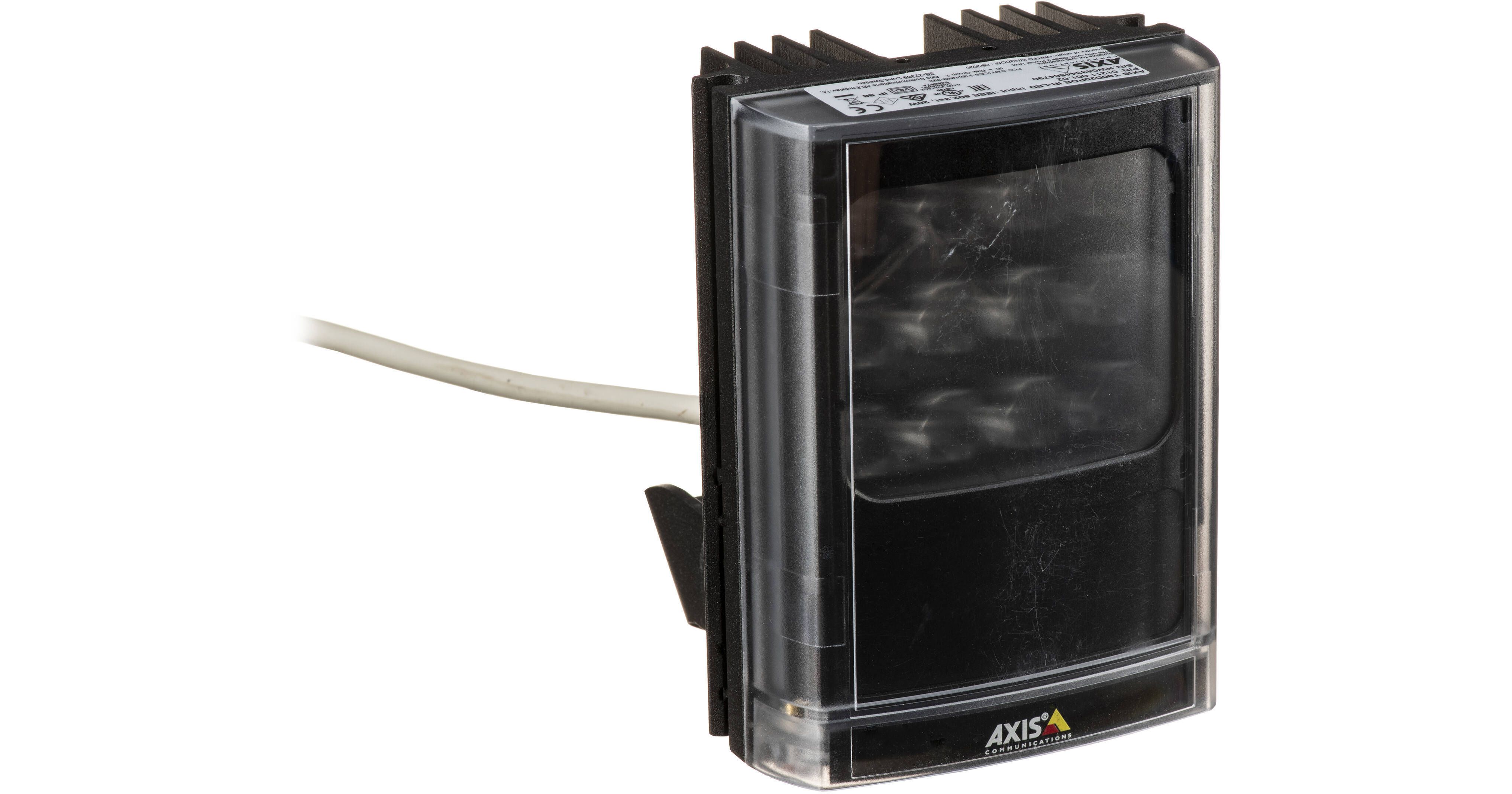

Axis 01211-001 T90D20 PoE IR-LED Illuminator
SKU
01211-001
Model No
T90D20 POE IR-LED
$466.76
Product Highlights
- Low power consumption
- Flexible angle of illumination
- Easy setup by remote control
- Choice of AC/DC or PoE power input
- Various mounting options
Speak to an expert
Axis 01211-001 T90D20 PoE IR-LED Illuminator Features
The 01211-001 from Axis is a PoE powered IR LED illuminator designed for enhancing night vision in network cameras. Offering interchangeable diverging lenses with multiple beam angles, this illuminator ensures exceptional performance in various environmental conditions, maintaining durability thanks to its robust construction and wide operating temperature range.
Key Features
- Low power consumption: Saves energy without compromising on illumination quality, reducing overall operating costs.
- Flexible angle of illumination: Interchangeable lenses with options of 10°, 35°, 60°, and 80° provide tailored lighting for different installations.
- Easy setup by remote control: Streamlines installation processes, allowing adjustments from a distance for convenience.
- Choice of AC/DC or PoE power input: Versatile power options enhance compatibility with various systems and setups.
- Various mounting options: Adapts to different environments, improving installation flexibility.
Axis 01211-001 T90D20 Detailed Specifications
| Power Source | PoE+ IEEE 802.3at required |
| Beam Distance | 36m to 144m (118 ft to 472 ft) |
| Materials | IK09 impact-resistant aluminium and polycarbonate |
| Impact Rating | IK09 |
| Weather Resistance | IP66 and NEMA 4X ratings |
| Operating Temperature | -50°C to 50°C (-58 °F to 122 °F) |
| Mounting Options | Multiple adaptable options available |
SKU  | 01211-001 |
|---|---|
| Manufacturer | Axis |
| Distance Range | 100-199 Feet, 200-299 Feet, 300-399 Feet, 400-499 Feet |
| Power Input | 12-24VDC, 12-24VAC |
| Angle Range | 0-10º Angle, 31-40° Angle, 51-60° Angle, 71-80° Angle |
Wavelength  | 850 NM |
