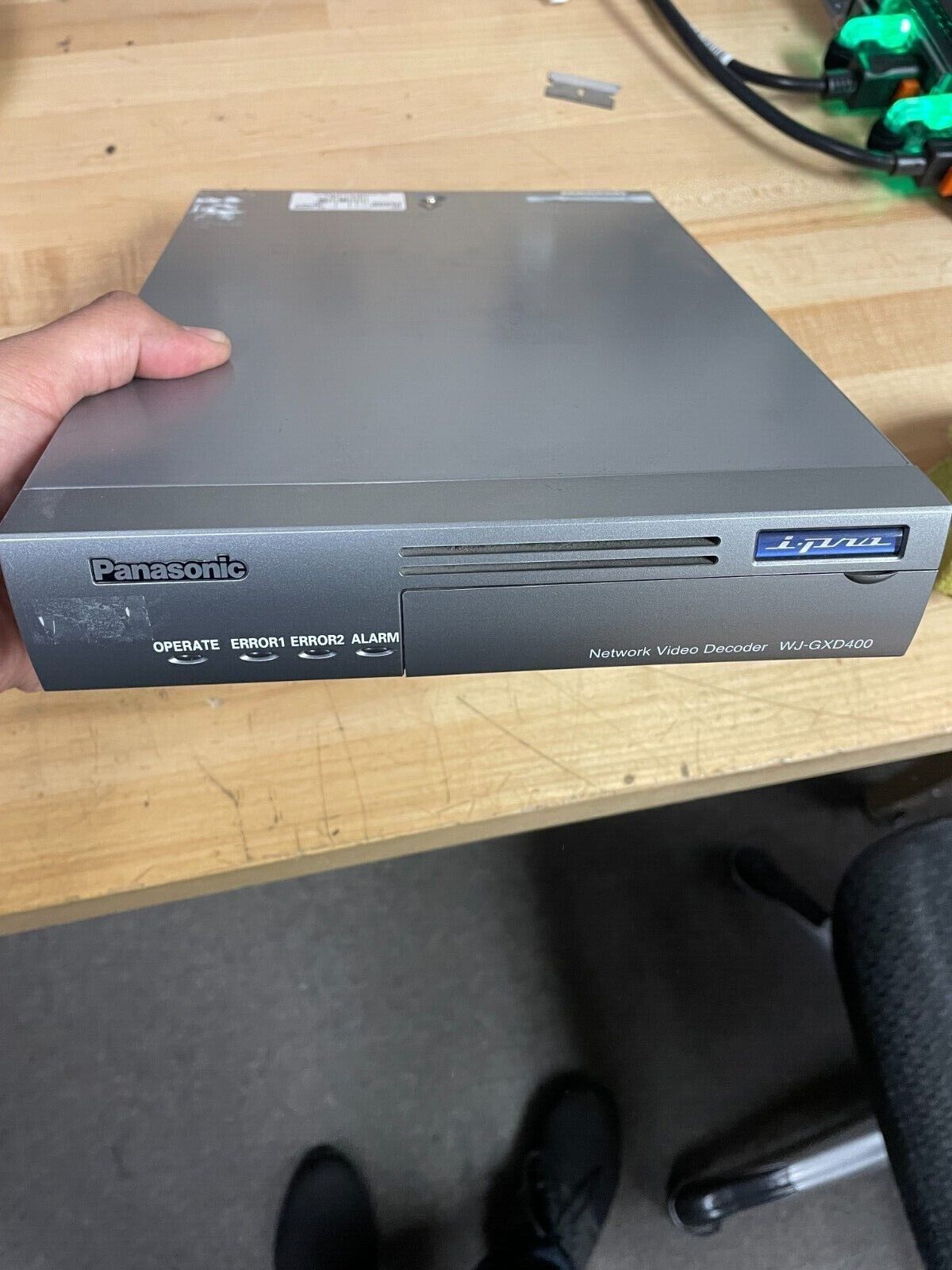

Panasonic WJ-GXD400 Multi-Channel Video Decoder with HDMI Interface

The Panasonic WJ-GXD400 Multi-Channel Video Decoder is designed to provide high-quality video decoding with an HDMI interface, enabling superior image clarity from Panasonic i-Pro network cameras and video encoders. With the ability to display multiple VGA images simultaneously, support for various camera configurations, and advanced networking features, this decoder enhances surveillance and monitoring capabilities for professional settings.

PANASONIC WJ-GXD400 Multi-Channel Video Decoder Features

• HDMI Interface: Equipped with a HDMI interface supporting 1,920 x 1,080 display size for high-definition visuals.
• Versatile Display Options: 1x 4VGA (1,280 x 960) image with 2x VGA or 6x VGA images in split screens allows for flexible viewing configurations.
• High Frame Rate: Each VGA image can be displayed at 30 or 25 frames/sec (NTSC/PAL), ensuring smooth video playback.
• Comprehensive Camera Support: Up to 256 cameras and encoders can be registered to enhance monitoring capabilities.
• Advanced Sequencing: Supports tour sequence and group sequence for automated camera management.
• Flexible Group Management: Up to 64 camera groups can be registered and accessed as needed for efficient surveillance.
• Alarm Functionality: Supports camera site alarm signals with visual indications and alarm terminal outputs for immediate alerts.
• Improved Network Efficiency: Supports Multicast/Unicast for optimized use of network resources.
• Audio Decoding: Single channel audio decoding G.726 enhances the monitoring experience with audio support.
• Schedule Function: Pre-programmed display modes can be activated by a time schedule for automated monitoring.
• Customizable Aesthetics: Selectable multiscreen border color options (White / Gray / Black / OFF) for personalized viewing environments.
• High-Speed Networking: Features a high-speed network interface (100Base-TX / 1000Base-T) and maintenance port (10Base-T) for robust connectivity.
• User-Friendly Setup: Setup can be performed via a browser GUI for convenient management.
• Reliability: Superior reliability ensured with an embedded OS for stability during operations.
• Climate Resilience: Operates in a temperature range of –10 °C to +50 °C (14 °F to 122 °F) for installation flexibility in various environments.

PANASONIC WJ-GXD400 Detailed Specifications
