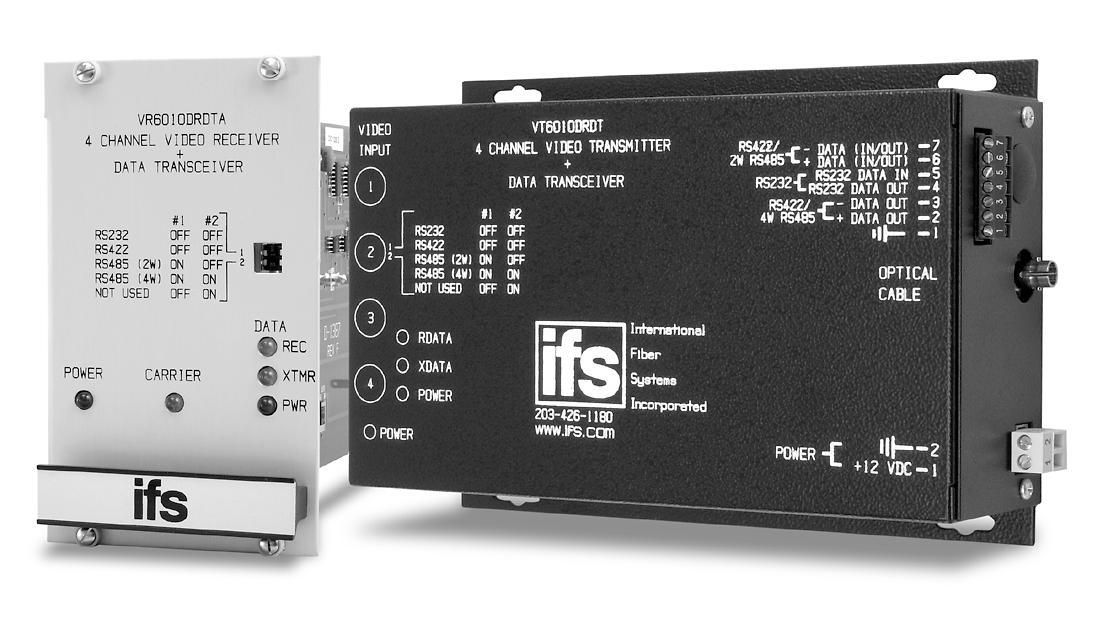

Interlogix VT6010-DRDT-R3 4 Channel FM Video Multiplexer with Bi-directional Data

The VT6010-DRDT-R3 multiplexer simultaneously transmits four channels of real-time video and one channel of bi-directional data over one multimode fiber optic cable. These modules utilize frequency modulation (FM) to reduce ghosting, jitter and cross-talk between channels, thereby providing superior video transmission. The modules are universally compatible with major CCTV and Access Control manufacturers and support bi-directional transmission of RS-232, RS-422, or 2 or 4-wire RS-485 data interfaces and all major data protocols. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The modules incorporate Power, Carrier Detect, Data Transmit and Data Receive status indicating LED’s. The modules are available in either stand-alone or rack mount version.

Features

• Transmits Four Real-Time Video Signals over Multimode Fiber: Enables efficient video monitoring without quality loss.
• Automatic Resettable Fuses on all Power Lines: Ensures reliable operation and safety in case of power surges.
• 10 Mhz Bandwidth per Individual Channel: Provides high-quality video transmission with minimal interference.
• NTSC, PAL, SECAM Compatible: Guarantees broad compatibility with standard video formats.
• No In-field Electrical or Optical Adjustments Required: Simplifies installation and setup, saving time and effort.
• Power, Carrier Detect, Data Transmit and Data Receiver Status Indicating LED’s: Offers real-time monitoring of device status for ease of use.
• Meets EIA RS-232, RS-422, RS-485 (2-wire/4-wire) Specifications: Ensures versatile connectivity options for data transmission.
• NTCIP Compatible: Facilitates integration with networked control and information systems.
• Bi-Directional Data Rates up to 100 kbps: Supports high-speed data communication alongside video signals.
• Transparent to Data Encoding/Compatible with Major Data Protocols: Simplifies data handling and ensures compatibility with existing systems.
• FM Design: Reduces common transmission issues like ghosting and cross-talk.
• Full Color Compatibility: Maintains video quality across various lighting conditions.
• Hot-Swappable Rack Modules: Allows easy upgrades and maintenance without system downtime.

Interlogix VT6010-DRDT-R3 Detailed Specifications
