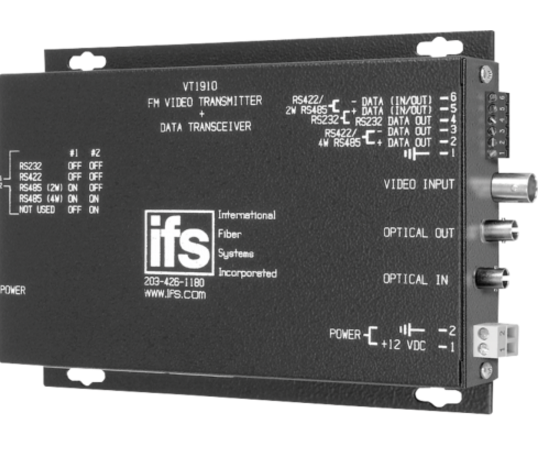

GE Security Interlogix VT1910WDM FM Video Transmitter / Data Transceiver, MM, 1 Fiber

SKU
VT1910WDM
Model No
VT1910WDM
$1,595.00
Qty:
Product Highlights
    • NTSC, PAL, SECAM Compatible
    • NTCIP Compatible
    • Supports Contact Closures, 24V AC/DC, 170ma - Optically Isolated
    • Optical Loss Relay Output
    • Supports RS-232, RS-422, RS-485 (Tri-State 2 or 4-Wire)

The VT1910WDM video transmitter/receiver and data transceiver supports the simultaneous transmission of frequency modulation (FM) video, contact closure and bi-directional data over one or two optical fibers. The modules are universally compatible with major CCTV camera manufacturers and support RS-232, RS-422, RS-485 (Tri-State 2 or 4-wire). Modules within the series are available for use with multimode or single mode optical fiber. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The modules incorporate power, and carrier detect status indicating LED’s to monitor proper system operation. The modules are available in either stand-alone or rack mount versions.

Features

  • FM Video Transmission reduces ghosting, jitter and cross-talk between channels, providing superior video transmission
  • NTSC, PAL, SECAM Compatible
  • NTCIP Compatible
  • Supports Contact Closures, 24V AC/DC, 170ma - Optically Isolated
  • Optical Loss Relay Output
  • Supports RS-232, RS-422, RS-485 (Tri-State 2 or 4-Wire)
  • Transparent to Data Encoding/Compatible with Major CCTV Camera Manufacturers
  • Power and Carrier Detect Status Indicating LED’s to Monitor System Performance
  • Integrated WDM for Greater Product Reliability
  • No In-field Electrical or Optical Adjustments Required
  • Tested and Certified by an Independent Testing Laboratory for Full Compliance with the Environmental Requirements (Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation, High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Tamper Switch
  • Automatic Resettable Fuses
  • Full Color Compatibility
  • Distances up to 43 Miles (69 km) Without Repeaters
SKU  VT1910WDM
Manufacturer  Interlogix
Fiber Optic Transmission use  Serial Data, Video
Channels  2 Channel
Connection Type  ST
Format  Multi-Mode
Mounting Options  Stand Alone, Surface Mount
