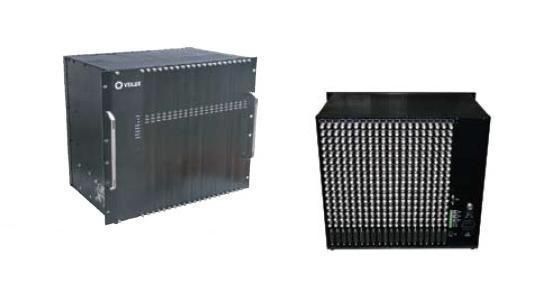

Veilux VMS-9U8064 Enterprise Modular Matrix Switcher (9u Unit) 80 Video Inputs 64 Video Outputs

The VMS-9U8064 from Veilux is an Enterprise Modular Matrix Switcher designed to handle demanding video operations with its exceptional capacity of 80 video inputs and 64 video outputs. This versatile 9U unit offers robust features for seamless control and management of video switching, providing enhanced performance and user convenience for various applications.

Veilux VMS-9U8064 Key Features

• Camera Title Input Through PC: Enables easy identification and integration of multiple cameras with built-in IP port functionality.
• IP Control Mode: Allows operation of the mainframe and video switch via IP, supporting Internet Explorer for streamlined access and management.
• Scalable High Density Architecture: Facilitates easy expansion capabilities due to its modular design within a 9U standard aluminum alloy case.
• Password Protection: Secures system operations against unauthorized access, ensuring safety and integrity of video management.
• Surge Protection: Equipped with video/audio and communications ports that have surge and thunder protection for added reliability.
• Backup Options: Supports computer backup for system settings and offers a heat backup mainframe design to prevent data loss.
• Multiple Keyboards Connectivity: Connects up to 64 branch keyboards and allows more than three levels of Ethernet connections for extensive remote control options.
• User-Friendly Menu Access: All functions of the matrix can be set and managed easily through an intuitive menu interface.
• Automatic Sensor and Recording: Features such as auto turn-on pickup sensors and light, with image switching and recording activation upon alarms.
• Preset Alarm Modes: Offers various alarm protection options including timing, manual, and inspection modes for comprehensive surveillance management.
• Expandability: Capable of expanding to 512 channel video outputs and 9999 channel video inputs with a loop design for flexibility.

Veilux VMS-9U8064 Detailed Specifications
