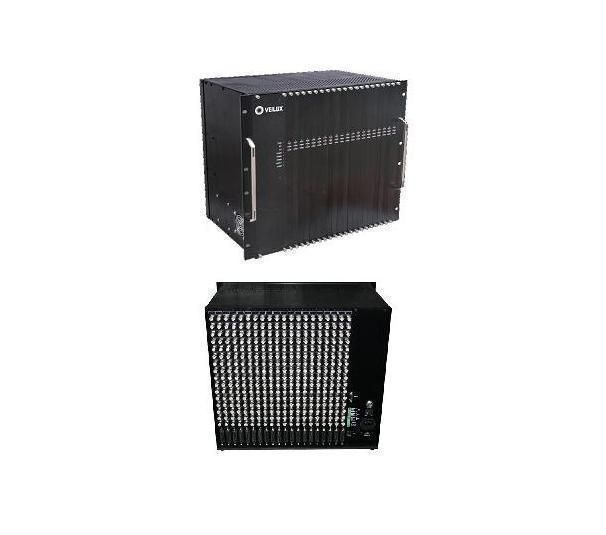

Veilux VMS-9U14432 VMS-9000 Series, Enterprise Modular Matrix Switcher 144 Video Inputs & 32 Video Outputs

The VMS-9U14432 from Veilux is a VMS-9000 series, enterprise modular matrix switcher providing 144 video inputs and 32 video outputs. This high-density architecture allows for easy expansion and efficient control, making it an ideal solution for large-scale video management systems.

Veilux VMS-9U14432 Key Features

• Camera Title Input Through PC: Enables easy organization and management of video feeds, enhancing operational efficiency.
• Built-in IP Control Mode: Facilitates remote control via IP, allowing seamless integration with existing systems and support for Internet Explorer.
• Plug-in Scalable Architecture: Designed for future expansions, accommodating growing video management needs within a 9U standard aluminium alloy case.
• Password Protection: Secures the system against unauthorized access, ensuring reliable and safe operations.
• Surge Protection: Protects the video/audio port and communications port from electrical surges, promoting longevity and reliability.
• Computer Backup: Allows for easy system set backups and provides a heat backup mainframe option design for added reliability.
• Connect 64 Branch Keyboards: Facilitates extensive control options through multiple keyboards and supports more than three levels of Ethernet connections for remote programming.
• Menu-Driven Functions: Simplifies user experience, allowing all functions of the matrix to be set through an intuitive menu system.
• Auto Turn on Pick-up Sensor: Improves automation with an automatic switch for image capture and recording following an alarm.
• Preset Alarm Mode: Provides versatile protection area configurations including timing, manual, and inspection modes for alarm management.
• Expandability: Supports an impressive expansion capability of up to 512 channel video outputs and 9999 channel video inputs with a loop design for input and output.

Veilux VMS-9U14432 Detailed Specifications
