Bosch VJT-X20S-H008 X20 Rugged Video Encoder 2 Video Inputs & 80GB Hard Disk
SKU
VJT-X20S-H008
Model No
VJT-X20S-H008
$2,766.00
Product Highlights
- Ruggedized for extended environmental conditions
- High-quality MPEG-4 video over IP
- H.264 Baseline Profile encoding
- Units with one, two, or four video inputs
- Built-in Intelligence-at-the-Edge
Speak to an expert

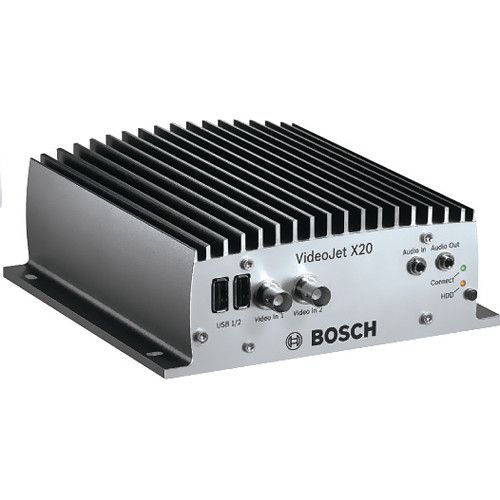

The Bosch VideoJet X20 Rugged Video Encoder is designed to provide high-performance video encoding under the most challenging conditions. With its durable housing, this encoder can handle extreme temperatures and maintain top-quality MPEG-4 and H.264 video over IP. Ideal for demanding CCTV applications, the X20 ensures reliable performance with multiple video inputs and built-in intelligence for enhanced monitoring capabilities.
Bosch VJT-X20S-H008 X20 Rugged Video Encoder Features
- Ruggedized for extended environmental conditions: Constructed to endure harsh weather and temperature extremes, ensuring reliable operation in challenging environments.
- High-quality MPEG?4 video over IP: Delivers excellent video quality and compression efficiency, optimizing bandwidth usage for improved video transmission.
- H.264 Baseline Profile encoding: Supports advanced video compression techniques for superior video quality with reduced file sizes, enhancing storage and transmission efficiency.
- Units with one, two, or four video inputs: Flexible input options to cater to various CCTV setups, allowing for custom configuration based on surveillance needs.
- Built-in Intelligence-at-the-Edge: Enables real-time video analysis and processing at the device level, improving response times and reducing load on central systems.
Bosch VJT-X20S-H008 X20 Rugged Video Encoder Detailed Specifications
| Product Type | Rugged Video Encoder |
| Video Inputs | 2 |
| Storage Capacity | 80GB Hard Disk |
| Operating Temperature Range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Video Compression | MPEG-4, H.264 Baseline Profile |
| Housing Type | Rugged Housing |
| Intelligence Features | Built-in Intelligence-at-the-Edge |
SKU  | VJT-X20S-H008 |
|---|---|
| Manufacturer | Bosch |
| No Of Channels | 2 Channel |
Audio Inputs  | 2 x mono in |
| Resolution | 704 X 480, 704 X 576 |
| Compression Method | H.264, JPEG, MJPEG, MPEG-4 |
| Protocols | 802.1x, ARP, DHCP, FTP, HTTP, HTTPS, ICMP, IGMP V2/V3, IP, RTP, RTSP, SMTP, SNMP, SNTP, TCP, Telnet, UDP |
| COM Ports | RS-232, RS-422, RS-485, Clamp |
| Features | Local Storage |
| Signal | Analog composite, 0.7 to 1.2 Vpp, NTSC or PAL |
| connector | BNC |
| Frame rate | 1 to 50/60 (PAL/NTSC) |
| Ethernet | Dual port 10/100 Base-T, auto-sensing, half/full duplex, RJ45 |
| Data rate | 9.6 kbps to 6 Mbps per channel |
