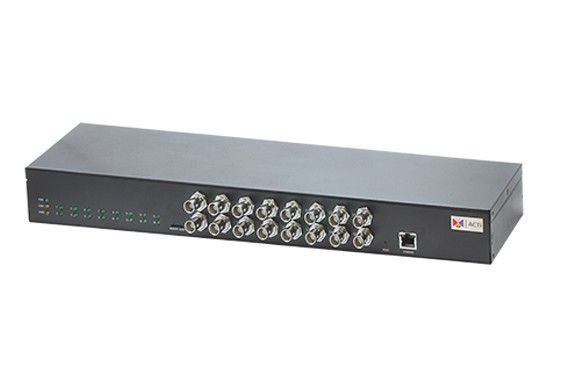

ACTi V32 16-Channel 960H/D1 H.264 Rackmount Video Encoder
Model No
V32
$2,393.55
Product Highlights
- Two-way audio (per channel)
- Video motion detection (per channel)
- Digital input and digital output (per channel)
- Serial ports for PTZ control (per channel)
- Rack-mountable (1U)
Speak to an expert
The ACTi V32 16-Channel 960H/D1 H.264 Rackmount Video Encoder offers a comprehensive video processing solution with advanced features to enhance surveillance capabilities. Designed for high performance, it supports multiple video compressions and provides robust functionality for various applications.
ACTi V32 Video Encoder Features
- Frame Rate: 25/30 fps at full D1 resolution (per channel) - Ensures smooth video playback, vital for detailed monitoring and analysis.
- Video Compression: Selectable H.264, MJPEG compressions - Offers flexibility in video quality and bandwidth usage, allowing users to optimize performance based on their needs.
- Audio Support: Two-way audio (per channel) - Facilitates interactive communication, enhancing the effectiveness of surveillance systems.
- Motion Detection: Video motion detection (per channel) - Enables automatic alerts and recording when motion is detected, improving security and response times.
- Input/Output Options: Digital input and digital output (per channel) - Allows integration with external systems and devices for expanded capabilities.
- PTZ Control: Serial ports for PTZ control (per channel) - Supports precise camera positioning and control, enhancing monitoring efficiency.
- Form Factor: Rack-mountable (1U) - Optimizes space in server racks, making it suitable for various installation environments.
ACTi V32 Technical Specifications
| Channel Capacity | 16 Channels |
| Video Format | 960H/D1 |
| Compression Type | H.264, MJPEG |
| Audio | Two-way audio |
| Video Detection | Video motion detection |
| Dimensions | 1U Rack-mountable |
SKU  | V32 |
|---|---|
| Manufacturer | ACTi |
| No Of Channels | 16 Channel |
Audio Inputs  | Terminal Block |
| Resolution | 720 X 480, 720 X 576, 960 X 480, 960 X 576 |
| Compression Method | H.264, MJPEG |
| Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| COM Ports | RS-422, RS-485 |
| Features | Local Storage, Privacy Masking, PTZ Support |
| Signal | NTSC/PAL |
| connector | BNC, RJ-45 |
| Frame rate | 30 fps at 960 x 480 (NTSC); 25 fps at 960 x 576 (PAL); 30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL) |
| Ethernet | 1, Gigabit Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| Video In | 16, CVBS, 1.0Vp-p with 75Ω BNC connector |
| Data rate | 28 Kbps - 6 Mbps (per stream) |
