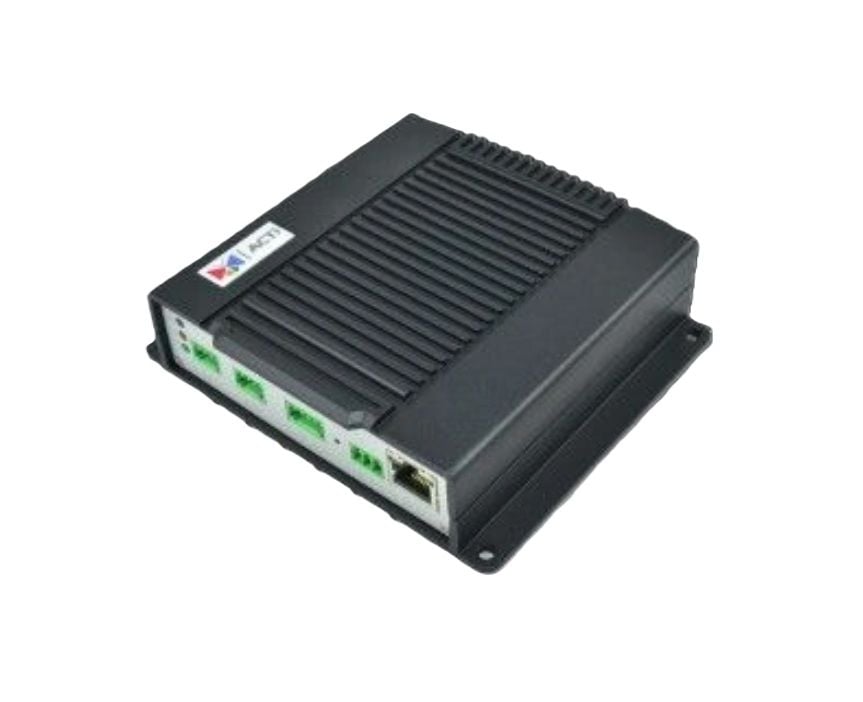

ACTi V21 1-Channel 960H/D1 H.264 Video Encoder
Model No
V21
$606.15
Product Highlights
- 25/30 fps at full D1 resolution
- Selectable H.264 HP, MJPEG compressions
- Two-way audio
- Video motion detection
- Digital input and digital output
Speak to an expert
The ACTi V21 1-Channel 960H/D1 H.264 Video Encoder is a powerful solution for video encoding, offering high-quality compression and various connectivity options. With support for multiple video formats, two-way audio capabilities, and PTZ control, this encoder is designed for flexibility and performance in security applications.
ACTi V21 Video Encoder Features
- 25/30 fps at full D1 resolution: Enjoy smooth video playback that enhances detail and clarity, making surveillance more effective.
- Selectable H.264 HP, MJPEG compressions: Choose between high-efficiency H.264 and MJPEG compression to optimize storage space without compromising quality.
- Two-way audio: Facilitate communication through the encoder, allowing for real-time interaction and monitoring.
- Video motion detection: Automatically detect movement, reducing false alarms and enhancing security monitoring.
- Digital input and digital output: Connect various devices easily, expanding the capabilities of your surveillance system.
- Serial ports for PTZ control: Control PTZ cameras seamlessly, providing flexibility in monitoring areas of interest.
- Analog video output: Maintain compatibility with legacy systems, ensuring a smooth transition to newer technology.
ACTi V21 Detailed Specifications
| Video Input | BNC Video Input |
| Video Output | RJ-45 Video Output |
| Audio | Two-way audio support |
| Storage | MicroSDHC/MicroSDXC support |
| Serial Ports | RS-485, RS-422 for PTZ control |
| Digital Input/Output | DI/DO functionality |
| Power Supply | PoE/DC12V |
SKU  | V21 |
|---|---|
| Manufacturer | ACTi |
| No Of Channels | 1 Channel |
Audio Inputs  | Terminal Block |
| Resolution | 720 X 480, 960 X 480 |
| Compression Method | H.264, MJPEG |
| Protocols | ARP, Bonjour, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| COM Ports | RS-422, RS-485 |
| Features | Local Storage, Power Over Ethernet, Privacy Masking, PTZ Support |
| Signal | NTSC/PAL |
| connector | BNC, RJ-45 |
| Frame rate | 30 fps at 960 x 480 (NTSC); 25 fps at 960 x 576 (PAL); 30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL) |
| Ethernet | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Operating System | Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP |
| Video In | 1, CVBS, 1.0Vp-p with 75Ω BNC connector |
| Data rate | 28 Kbps - 6 Mbps (per stream) |
