Comelit SK9011 RF Receiver 868 MHz
SKU
SK9011
Model No
SK9011
$455.80
Product Highlights
- Basic Stand-Alone Hf 868 Mhz Receiver
- Integrated antenna
- Manage primary and secondary doors
- 12Vdc power supply

Speak to an expert

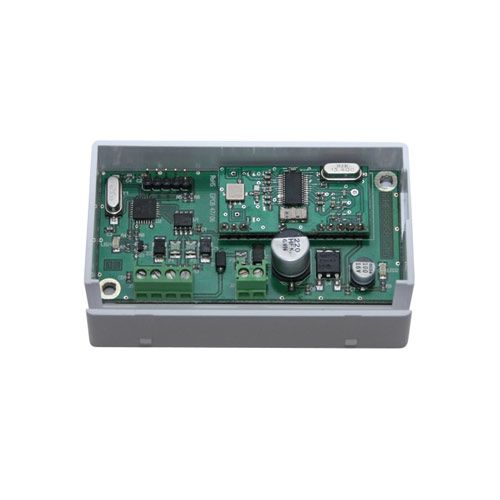

The Comelit SK9011 RF Receiver is a versatile radio module designed for seamless control of automatic garage doors. Equipped with advanced features, this 868 MHz receiver manages a significant capacity of 1500 transmitters, ensuring efficient access control. Its user-friendly programming and adjustable timer enhance functionality, while the LED indicator provides easy monitoring. With robust memory capabilities and options for pass badges, the SK9011 delivers exceptional convenience and security for both primary and secondary doors.
Comelit SK9011 RF Receiver Features
- Capacity: Supports up to 1500 transmitters, allowing extensive management of access points.
- Programming: Easy setup with SK9091 PC software and USB encoder ensures quick transmitter encoding.
- Adjustable Timer: Timer settings from 1 to 60 seconds enhance flexibility for door operations, preset to 2 seconds.
- LED Indicator: Provides real-time operational and diagnostic feedback for user convenience.
- Event Storage: Remembers the last 1000 events, facilitating effective monitoring and analysis.
- Access Management: Capability to manage primary and secondary doors with pass badges offering added security.
- Alarm Functions: Incorporates one entrance and one exit alarm for increased safety measures.
- Wiegand Output: Compatibility with non-Comelit management modules expands integration options.
- Compact Design: PVC housing dimensions of 55 x 85 x 20 mm for easy installation and discreet presence.
- Power Supply: Operates on a standard 12Vdc power supply for reliable functionality.
Comelit SK9011 RF Receiver Specifications
Feature | Details |
Frequency | 868 MHz |
Number of Transmitters | 1500 |
Programming Method | SK9091 PC software & USB encoder |
Timer Range | 1 - 60 seconds (preset at 2 seconds) |
LED Indicator | Yes, for operation & diagnostics |
Event Storage | Last 1000 events |
Access Management | Primary & secondary doors with pass badges |
Alarm Functions | 1 entrance & 1 exit alarm |
Output Type | Wiegand |
Power Supply | 12Vdc |
Housing Material | PVC |
Dimensions | 55 x 85 x 20 mm |
