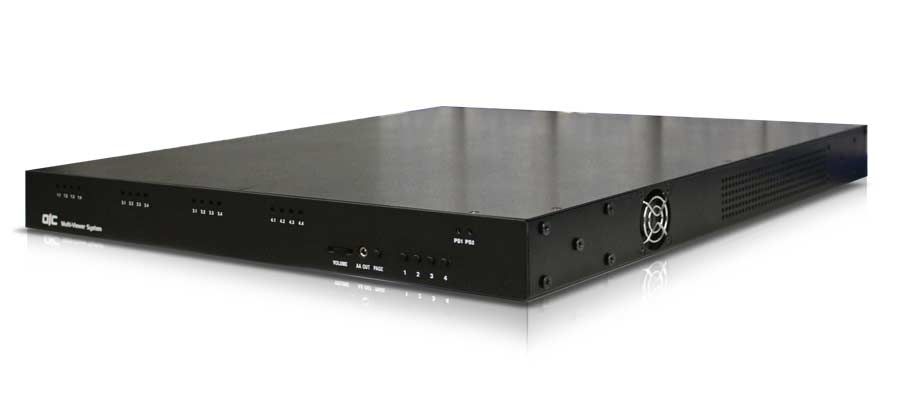

Orion OIC-M802 HD Multi-Viewer System

The OIC-M802 from Orion is a first high definition multi-window monitoring system featuring 8 universal inputs/windows, with user-selectable resolutions up to 2048 x 1080 (including 1920 x 1080p) and infinitely adjustable screen layouts. This 1 RU, rack-mountable video scaler/processor allows for maximum flexibility in screen layout and for viewing multi-window content of video and graphics at the same time over a single or multiple displays.

Orion OIC-M802 Camera Features

Features

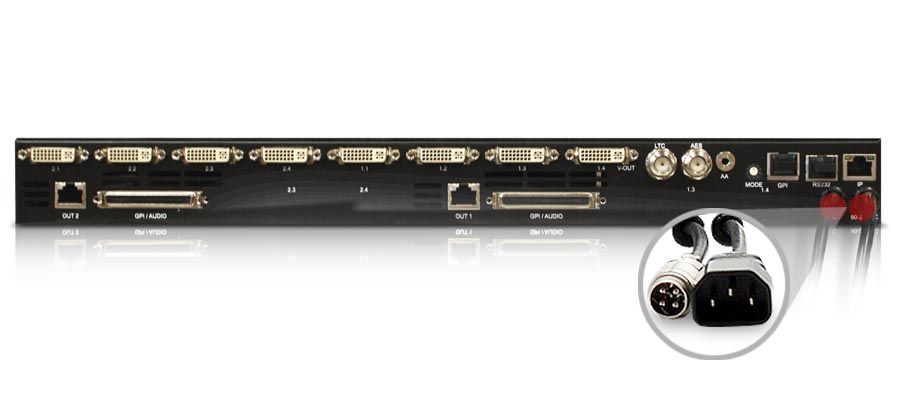

• Universal Inputs: Accepts standard DVI and RGB inputs along with optional HDMI, YPbPr, and SD/HD/3G-SDI for versatile connectivity.
• Flexible Output: Supports 1 channel output (for all 8 inputs) or 2 channel output (for every 4 inputs) for customized viewing options.
• High Resolution Output: Output resolutions up to 2048 x 1080 including 1920 x 1080p provide crystal clear images through DVI or HDMI.
• Custom Graphics Support: OIC Commander application allows users to design on-screen graphical elements using any graphics tool, enhancing flexibility.
• Audio Monitoring: Front panel headphone jack with volume control for easy audio monitoring and adjustments.
• Embedded Audio Options: Optional HDMI and SD/HD/3G-SDI models come with embedded audio for complete multimedia functionality.
• Extended Connectivity: Built-in CATx extender extends 1080p signals up to 115 feet with optional cabling, ensuring long-distance transmission.
• Quick Preset Recalls: Front panel buttons allow quick access to 30 preset recalls for user convenience.
• Compact Design: Compact 1RU height and rack-mount kit provided for easy installation in various setups.
• Expandable Options: Optional 16CH input model OIC-M1604 (2RU) available for users needing additional inputs.

Orion OIC-M802 Detailed Specifications
