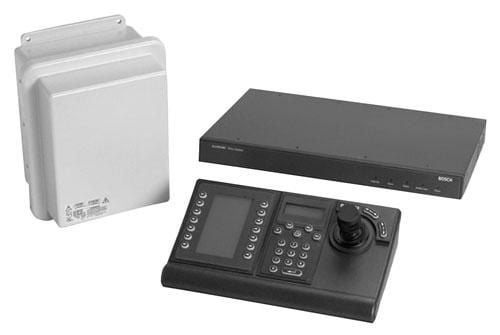

Bosch LTC-8300-90 Allegiant 32 X 6 CCTV Matrix Switcher 120-230VAC

The LTC-8300-90 from Bosch is an Allegiant® video switcher/control system that combines both switching and computer technology to provide powerful performance and unique system features for the security user. Offering full matrix switching capability, these systems can be programmed to display the video from any camera on any monitor, either manually or via independent automatic switching sequences. The LTC-8300-90 provides from 32 camera inputs, 6 monitor outputs, 4 keyboards, 32 direct connect alarm input points, an integral signal distribution unit, and a computer interface port.

The LTC-8300-90 can be programmed with up to 60 sequences which can be run independently of each other in either a forward or reverse direction. Any of the sequences can utilize the Salvo Switching capability where any number of system monitors may be selected to switch as a group. The LTC-8300-90 utilizes the integral signal distribution ports; connections to on-site receiver/drivers are easily made. Onsite receiver/drivers provide operator control of pan, tilt, zoom; multiple pre-positions; four auxiliaries; auto-pan, and random scan. The LTC-8300-90 system also supports variable speed operation and full programming functions of AutoDome® Series dome cameras. The LTC-8300-90 includes a black outlined 48-character onscreen display for time-date, camera number, camera ID (16-characters), an icon to identify controllable cameras, and monitor (12-characters) or status information. It provides powerful macro capabilities. The macros can be activated using Allegiant Series keyboards, system time event functions, alarm activations, and via special function icons in the LTC 8850/00 GUI software.

Bosch LTC-8300-90 Allegiant Camera Features

Features

• Camera Inputs: Supports up to 32 camera inputs to accommodate extensive surveillance needs.
• Monitor Outputs: Offers 6 monitor outputs for flexible video display options across multiple screens.
• Alarm Interface: Integral alarm interface allows for seamless integration with alarm systems for enhanced security.
• Macro Capabilities: Powerful macro functions enable complex automation and control of the camera system.
• User-friendly Display: 48-character onscreen display enhances usability with clear time-date and camera information.
