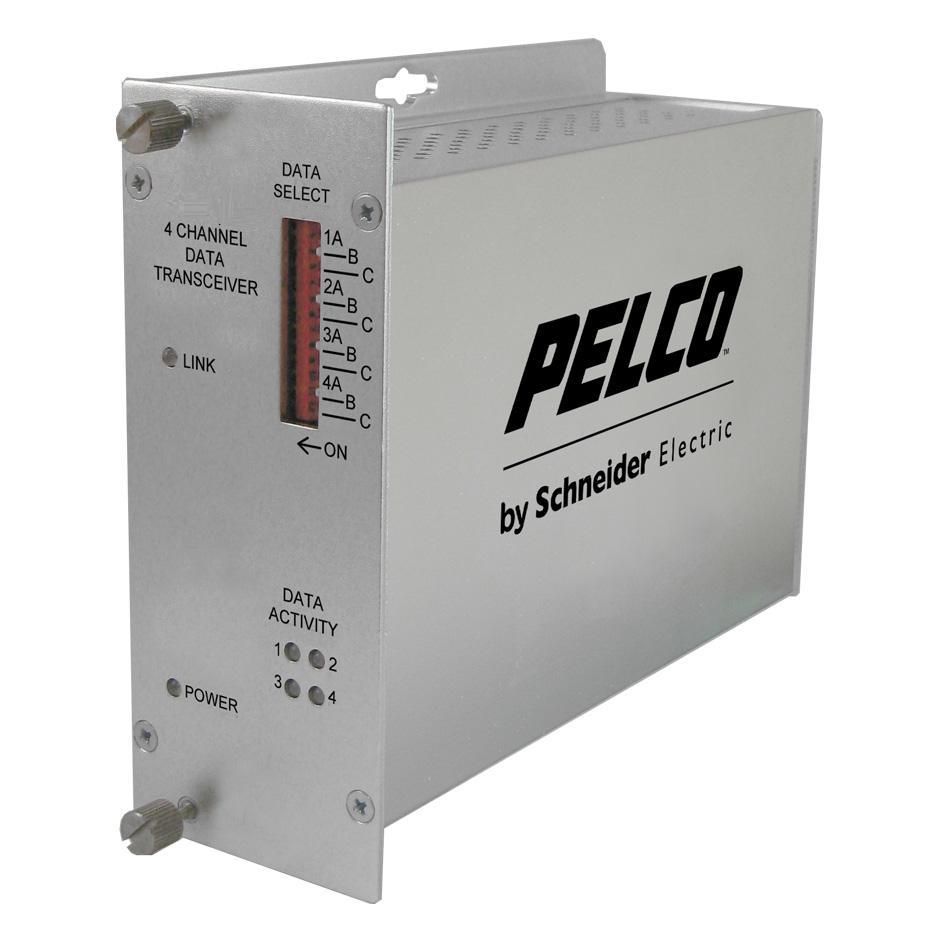

Pelco FTD4S1FC 4 Channel FC Fiber Transmitter Bidirectional Data, Single Mode

SKU
FTD4S1FC
Pelco FTD4S1FC 4 Channel FC Fiber Transmitter Bidirectional Data, Single Mode FTD4S1FC by Pelco
Pelco FTD4S1FC 4 Channel FC Fiber Transmitter Bidirectional Data, Single Mode FTD4S1FC by Pelco
Model No
FTD4S1FC
$1,031.00
Qty:
Product Highlights
    • 4 Bidirectional Data Channels Support RS-232, RS-422, RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
    • Single-Mode Support for Distances up to 69 km (42.9 mi)
    • Laser Diode for Transmission of Optical Signals
    • Designed to Meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
    • LED Status Indicators for Monitoring All Critical Operating Parameters

The plug-and-play design ensures ease of installation by eliminating the requirement of electrical or optical adjustments. Modular in design, this transmitter unit can be rack-mounted using the EURACK/USRACK chassis (both separately), or standalone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).

For standalone and wall mount installations, external power (sold separately) is required for the transmitter unit. This transmitter unit can be powered with the FEXTPS fiber external power supply (sold separately).

Features

  • 4 Bidirectional Data Channels Support RS-232, RS-422, RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
  • Multimode Fiber Support for Distances up to 3 km (1.9 mi)
  • Single-Mode Support for Distances up to 69 km (42.9 mi)
  • Laser Diode for Transmission of Optical Signals
  • Designed to Meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
  • LED Status Indicators for Monitoring All Critical Operating Parameters
  • Voltage Transient Protection on All Power and Signal Input/Output Lines
  • Hot-Swappable Rack Modules
  • Stand-Alone or Rack-Mountable Modular Design
SKU  FTD4S1FC
Manufacturer  Pelco
NDAA Compliant
Fiber Optic Transmission use  Serial Data
Channels  4 Channel
Connection Type  FC
Format  Single Mode
Mounting Options  Rack Mount, Stand Alone
There are no related videos.
Downloads & Manuals
SKU
FTD4S1FC
Availability: In stock
