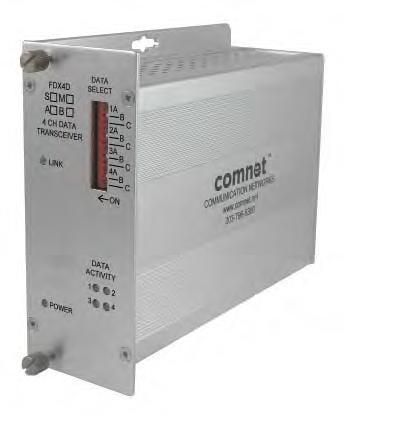

Comnet FDX4DS1A Data Transceiver (1310/1550 nm)

SKU
FDX4DS1A
Comnet FDX4DS1A Data Transceiver (1310/1550 nm) FDX4DS1A by Comnet
Comnet FDX4DS1A Data Transceiver (1310/1550 nm) FDX4DS1A by Comnet
Model No
FDX4DS1A
$1,179.38
Qty:
Product Highlights
    • Supports RS232, RS422, and 2 or 4-wire RS485 with tristate data interfaces
    • Four bi-directional data channels
    • Robust design ensures extremely high reliability in unconditioned out-of-plant environments
    • Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
    • Hot-swappable rack modules

The ComNetâ„¢ FDX4DS1A data transceiver provide transmission of four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features

  • Supports RS232, RS422, and 2 or 4-wire RS485 with tristate data interfaces
  • Four bi-directional data channels
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
  • Robust design ensures extremely high reliability in unconditioned out-of-plant environments
  • Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use – ComFit
SKU  FDX4DS1A
Manufacturer  Comnet
Fiber Optic Transmission use  Data, Serial Data
Channels  4 Channel
Connection Type  FC, ST
Format  Single Mode
Mounting Options  Rack Mount, Surface Mount
