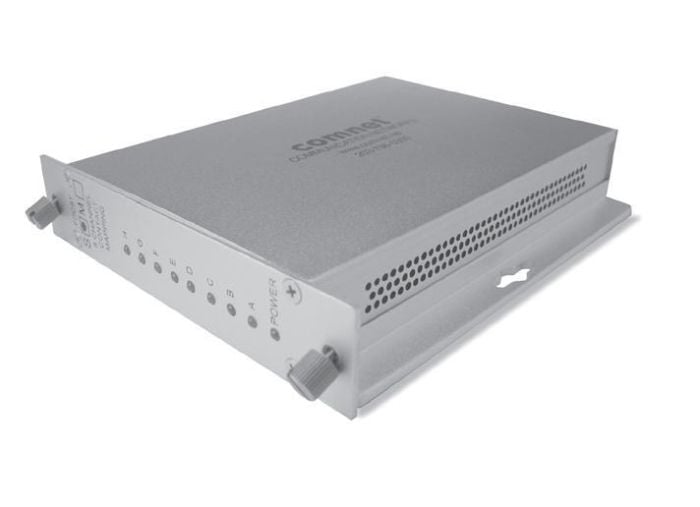

Comnet FDC8TS1 8-Channel Contact Closure Transmitter

The ComNet™ FDC8TS1 contact closure transmitter and receiver provides transmission of up to eight independent contact closures over one RS232 link or optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. Each module incorporates power and individual status indicating LEDs for monitoring confirmation of contact closure of each of the eight channels. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate.

ComNet FDC8TS1 Features

• Transmits: Up to eight contact closures over one RS232 link or one optical fiber for versatile connectivity options.
• Channel Architecture: Eight channel Point-to-Point transmission architecture ensuring straightforward and efficient communication.
• Indicating LEDs: For monitoring power and contact channels, providing clear visibility of operational status.
• SPST Latching Relays: Eight relays with individual indicators maintain their state even during power loss for enhanced reliability.
• Compliance Testing: Independently certified for environmental durability, meeting NEMA TS-1/TS-2 standards ensuring long-lasting performance.
• Microprocessor-Based Logic: Eliminates random contact closure status risks due to link or power loss, ensuring consistent operation.
• Relay Contact Rating: 30 VDC, 1 Amp normally open for robust power management.
• Current Limiters: Automatic resettable solid-state current limiters protect against overloads for safe operation.
• Hot-Swappable Modules: Allow for easy upgrades and maintenance without system downtime.
• Versatile Mounting: Interchangeable between stand-alone or rack mount use with the ComFit system for adaptable installations.

ComNet FDC8TS1 Detailed Specifications
