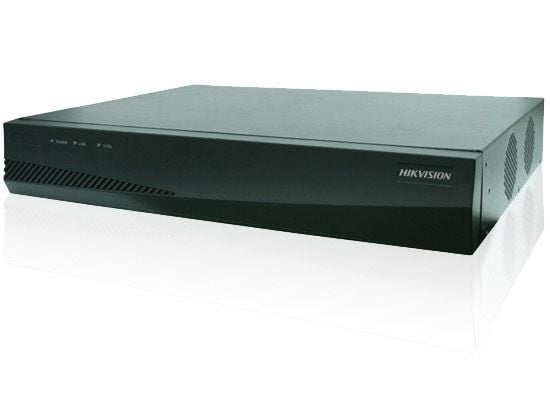

Hikvision DS-6408HDI-T 8-Channel, High Definition Video Decoder
SKU
DS-6408HDI-T
Model No
DS-6408HDI-T
$1,546.30
Product Highlights
- Private H.264, Standard H.264, MJPEG, MPEG2, and MPEG4
- High-Definition DVI/VGA/HDMI, StandardDefinition BNC Interfaces
- Decodes Video Stream at 8 MP, 5 MP, 3 MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
- VCA Decoding
- Window Spanning, Floating, and Windowing
Speak to an expert
Introducing the Hikvision DS-6408HDI-T 8-Channel High Definition Video Decoder, engineered for exceptional video monitoring and decoding capabilities. This robust decoder supports a wide range of resolutions and video formats, ensuring compatibility with your existing systems. With multiple output interfaces and advanced network protocol support, it delivers reliable performance for both personal and professional use.
Hikvision DS-6408HDI-T Key Features
- Supports multiple video formats including Private H.264, Standard H.264, MJPEG, MPEG2, and MPEG4 for versatile application.
- High-Definition output via DVI, VGA, HDMI, and Standard Definition through BNC interfaces for flexible connectivity options.
- Decodes video streams at various resolutions from 8 MP to QCIF, ensuring high-quality display options.
- VCA Decoding feature enhances video content analysis for improved monitoring capabilities.
- Window Spanning, Floating, and Windowing functionalities allow for customized viewing experiences.
- Equipped with a 10/100/1000Mbps self-adaptive Ethernet interface for high-speed network connectivity.
- Supports TCP, UDP, and Multicast network protocols for seamless integration in various network environments.
Detailed Specifications
| Model | Hikvision DS-6408HDI-T |
| Video Formats Supported | Private H.264, Standard H.264, MJPEG, MPEG2, MPEG4 |
| Output Interfaces | DVI, VGA, HDMI, BNC |
| Decoding Resolutions | 8 MP, 5 MP, 3 MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| VCA Decoding | Yes |
| Networking | 10/100/1000Mbps Ethernet Interface |
| Supported Network Protocols | TCP, UDP, Multicast |
SKU  | DS-6408HDI-T |
|---|---|
| Manufacturer | Hikvision |
| No Of Channels | 8 Channel |
Resolution  | 176 X 120, 360 X 240, 528 X 320, 640 X 480, 704 X 480, 720 X 240, 1280 X 720, 1920 X 1080 |
| Compression Method | MPEG-2, H.264, MJPEG, MPEG-4 |
| COM Ports | RS-232, RS-485 |
| Protocols | TCP, UDP |
| Connector | DB15 connector |
| Signal | NTSC, PAL |
| Ethernet | 1; 10/100/1000 Mbps self-adaptive Ethernet interface |
| Video In | H.264 / MPEG4/ MPEG2/ Private /MPEG |
| Audio Line Output | 1-ch, DB15 connector |
| Frame Rate | PAL: 1/16~25fps, NTSC: 1/16~30fps |
