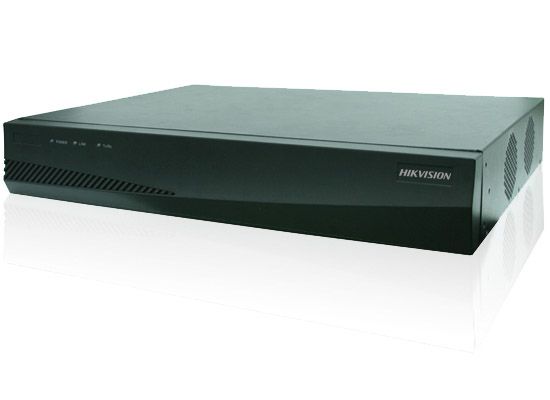

Hikvision DS-6404HDI-T 4-Channel, High Definition Video Decoder
SKU
DS-6404HDI-T
Model No
DS-6404HDI-T
$1,722.00
Product Highlights
- Private H.264, Standard H.264, MJPEG, MPEG2, and MPEG4
- High-Definition DVI/VGA/HDMI, StandardDefinition BNC Interfaces
- Decodes Video Stream at 8 MP, 5 MP, 3 MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
- VCA Decoding
- Window Spanning, Floating, and Windowing
Genuine U.S. Model - English Version
Designed for high-definition video monitoring systems, Hikvision video/audio decoders ensure high reliability and stability. The HD video/audio decoder can decoding video streams at 8 MP, 5 MP, 3 MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF resolutions and output decoded video via BNC, VGA, DVI, or HDMI interfaces, depending on model. They also support multiple network protocols and multiple stream transmission mode. The decoded video can be displayed on a video wall or a large screen.
Features
- Private H.264, Standard H.264, MJPEG, MPEG2, and MPEG4
- High-Definition DVI/VGA/HDMI, StandardDefinition BNC Interfaces
- Decodes Video Stream at 8 MP, 5 MP, 3 MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
- VCA Decoding
- Window Spanning, Floating, and Windowing
- One 10/100/1000Mbps Self-Adaptive Ethernet Interface
- TCP, UDP, and Multicast Network Protocols
SKU  |
DS-6404HDI-T |
|---|---|
| Manufacturer |
Hikvision |
| No Of Channels |
4 Channel |
Resolution  |
176 X 120, 360 X 240, 528 X 320, 640 X 480, 704 X 480, 720 X 240, 1280 X 720, 1920 X 1080 |
| Compression Method |
MPEG-2, H.264, MJPEG, MPEG-4 |
| COM Ports |
RS-232, RS-485 |
| Protocols |
TCP, UDP |
| Connector | DB15 connector |
| Signal | NTSC, PAL |
| Ethernet | 1; 10/100/1000 Mbps self-adaptive Ethernet interface |
| Video In |
H.264 / MPEG4/ MPEG2/ Private /MPEG |
| Audio Line Output |
1-ch, DB15 connector |
| Frame Rate |
PAL: 1/16~25fps, NTSC: 1/16~30fps |
