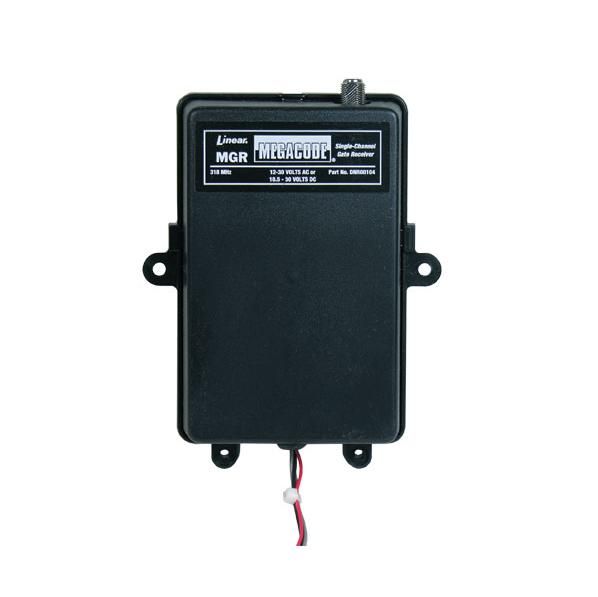

Linear DNR00104 MGR 1-Channel Gate Receiver, 318 MHz

The DNR00104 from Linear is a 1-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.

Linear DNR00104 MGR 1-Channel Gate Receiver Features

• Single Form "A" Relay: Rated at 30 Volts AC/DC up to 5 Amps, providing reliable operation and control of gate mechanisms.
• Complete with Accessories: Supplied with a whip antenna, three feet of coaxial cable, and a bulkhead connector for easy installation and enhanced signal reception.
• Memory Capacity: Supports storage for up to 40 MegaCode transmitters, allowing for flexible remote access and convenience.
• Wide Power Input: Operates on 12 – 30 VAC or 10.5 – 30 VDC, offering versatility in power options to fit various setups.
• Vast Code Options: Features over 1,000,000 possible codes in MegaCode format, ensuring secure access and reduced risk of unauthorized usage.
• RF Frequency: Operates at a frequency of 318 MHz for reliable communication across typical outdoor ranges.
• Compact Dimensions: Measures 3.625" W x 5.25" H x 1.5" D, enabling easy integration into existing systems without taking up significant space.

Linear DNR00104 Detailed Specifications
