GE Security Interlogix D2325 RS485: (2 Wire) Data Repeater, SM, 2 Fibers

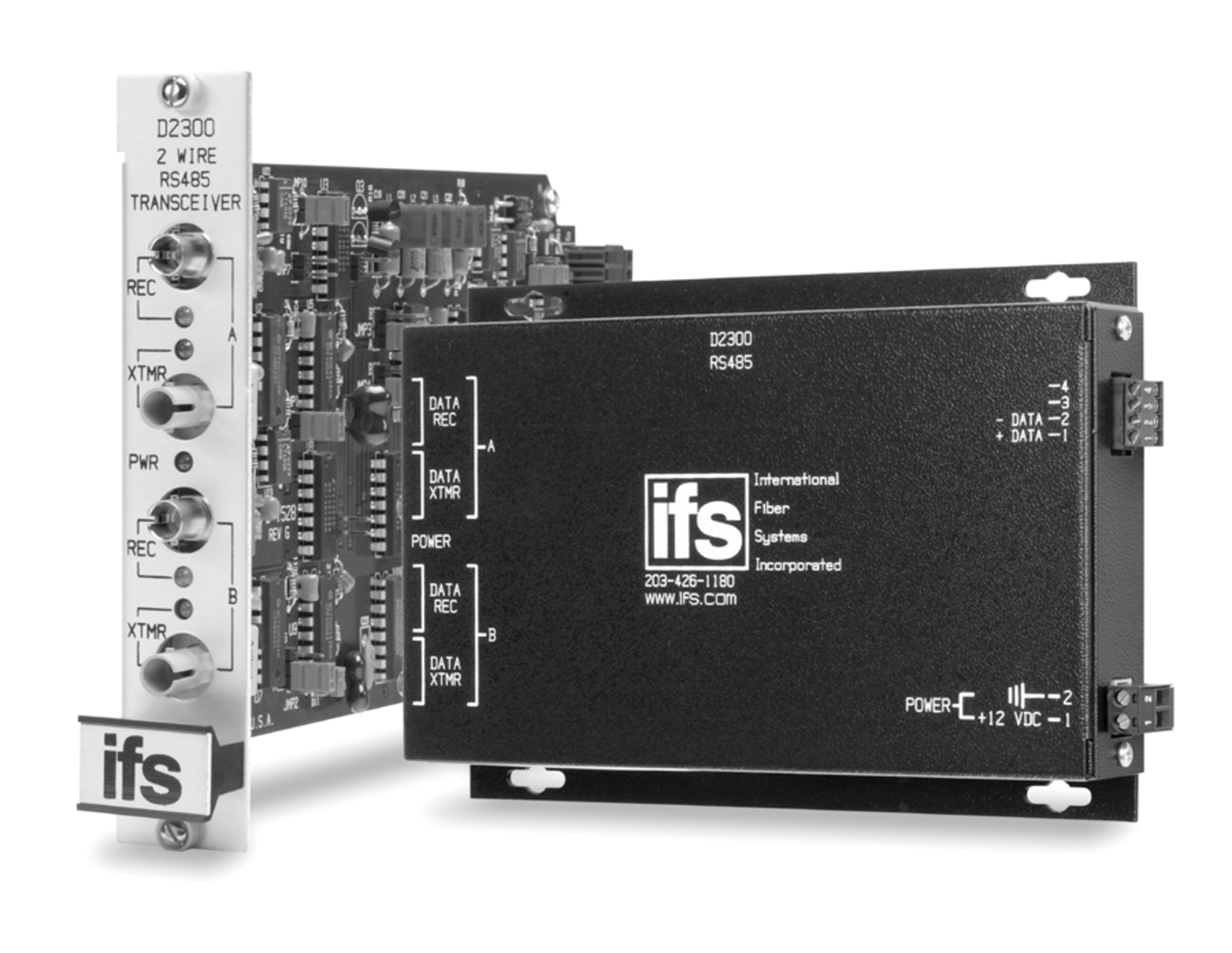

The IFS D2300 series data transceivers provide drop and repeat transmission of half-duplex (2-wire) EIA RS-485 data signals over one or two optical fibers. The transceivers feature optical “drop & repeat” capability that allows the user to easily configure the network operation. The transceivers are transparent to data encoding allowing for broad-range compatibility. The D2300 series transceivers can be used as line-terminating devices with these modules. Models within this series are available for use with multimode or single mode optical fiber. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates power and transmit/receive data status indicating LED’s for monitoring proper system operation. The modules are available in either stand-alone or rack mount versions.

Features

• Meets EIA RS-485 Specifications
• Tested and Certified by an Independent Testing Laboratory for Full Compliance with the Environmental Requirements (Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation,
• High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans
• Specification for Traffic Signal Control Equipment
• Automatic Resettable Solid-State Current Limiters
• Power, Transmit and Receive Data Status LED Indicators
• No In-field Electrical or Optical Adjustments Required
• Data rates up to 200 kbps NRZ
• Data Re-clocking
• Transparent to Data Encoding / Compatible with Major Data Protocols
• Drop and Repeat Network Architecture
• 2-Wire (Half-Duplex)
• True Tri-State Output
• Distances up to 20 Miles (33 km)
