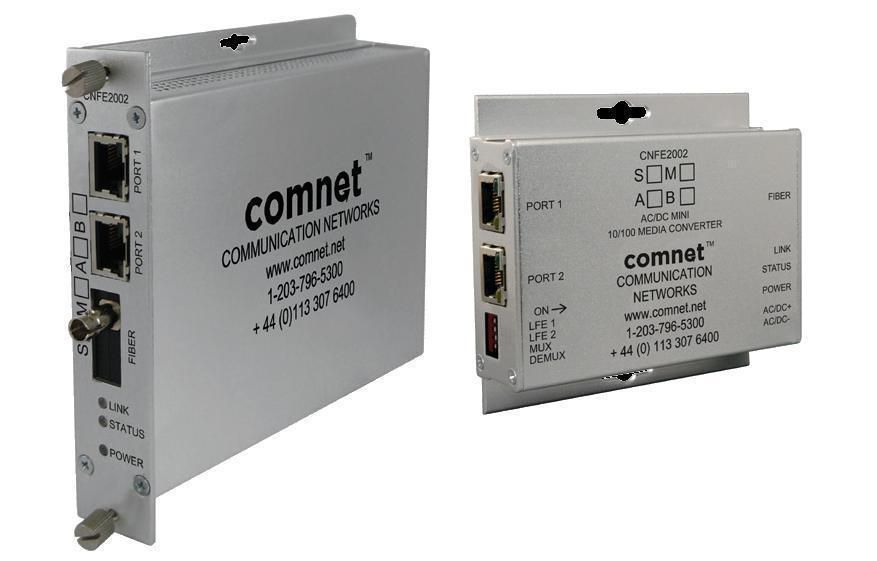

Comnet CNFE2002M1BPoE/M Mini PoE 10/100 Mbps Media Converter

The ComNet Ethernet CNFE2002M1BPoE/M Mini PoE Media Converter is a highly efficient device designed to convert Ethernet electrical signals to optical signals, enabling seamless connectivity over long distances. With its ability to support two 10/100 Mbps electrical inputs and convert them into a single 100 Mbps optical output, this media converter offers exceptional performance. Key features include power over Ethernet (PoE+) functionality, compatibility with a range of power inputs, and advanced traffic management features that ensure reliable network performance.

ComNet CNFE2002M1BPoE/M Media Converter Features

• 30W PoE+ on ports 1 and 2: Powers connected devices without the need for additional power sources, simplifying installations.
• 10/100 Mbps Ethernet: Supports high-speed data transmission essential for modern network applications.
• 2 - 10/100 BASE-T/TX electrical ports: Allows for dual-channel connectivity, enhancing network flexibility.
• 100 BASE-FX optical port: Provides high-speed optical output for longer distance communication.
• Electrical ports Auto-Negotiation: Automatically detects and adjusts connection settings for optimal performance.
• 100 Mbps full duplex on optical port: Ensures efficient data transfer with minimal delay.
• Automatic MDI/MDI-X crossover: Eliminates the need for crossover cables, making installation easier.
• Distance capabilities: Supports distances up to 3 km (2 mi) for Multimode and 20 km (12 mi) for Single Mode, ideal for expansive setups.
• Link Fault Pass-Through: Provides real-time failure alerts for proactive network management.
• Environmental compliance: Designed to meet NEMA TS-1/TS-2 standards, ensuring durability in various conditions.
• ST optical connector: Supports easy integration with existing fiber networks.
• 1 fiber design: Streamlines installation and reduces space requirements.
• Voltage transient protection: Safeguards the device from damaging power surges.
• No in-field optical adjustments required: Simplifies maintenance and setup processes.
• Remote side link failure detection: Enables swift troubleshooting and enhanced network reliability.
• Hot-swappable rack module: Facilitates easy upgrades and replacements without downtime.
• Interchangeable between stand-alone or rack mount use: Offers versatile deployment options to fit different scenarios.
• IEEE 802.3 compliant: Ensures compatibility with a wide range of Ethernet standards.

ComNet CNFE2002M1BPoE/M Detailed Specifications
