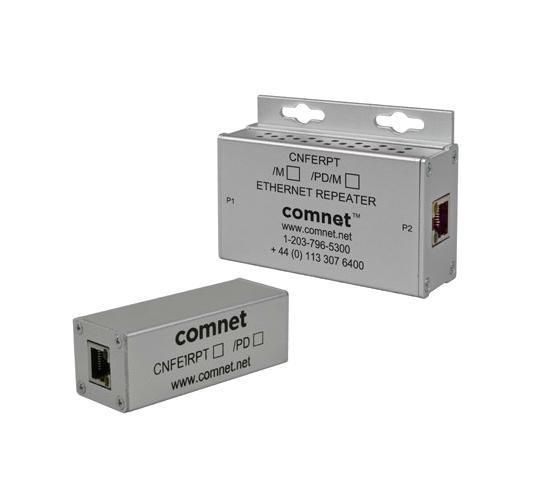

The ComNet™ CNFE1RPT is an Ethernet repeater supporting up to 60 watts of Passthrough PoE, providing a simple and cost-effective way to extend Ethernet signals beyond the standard Ethernet 328 foot (100 meter) limit. The CNFE1RPT can be used to double the distance to 656 feet (200 meters) or multiple units can be combined in series with each unit providing an additional 328 feet (100 meters). The CNFE1RPT is powered by pass-through PoE from a PoE switch or midspan injector, requiring no local power. Low power consumption ensures that maximum power is made available to the remote PD device. Available in standard configuration, which passes through the PoE to the next device, or as a /PD model, which acts as the final PoE unit in the chain and does not pass through the PoE, providing maximum flexibility for all design scenarios. The compact tube design allows for direct installation within conduit or other small enclosures. A mini size unit is also available for surface mounting, or DIN rail mounting with use of the soldseparately DINBKT4 adaptor.
ComNet CNFE1RPT Ethernet Repeater Features
Extends: 10/100 Mbps Ethernet and PoE by 328 ft (100 m), enabling greater network reach.
Temperature Range: Extended operation from -40°C to +75°C, ensuring performance in extreme conditions.
Standards Compliance: Pass-through PoE meets the IEEE 802.3af/at standards for Power over Ethernet, ensuring compatibility with numerous devices.
Power Requirement: Powered by PoE (no local power required), simplifying installation and reducing costs.
Power Output: Supports PoE++ 60 W pass-through, meeting high power demands of devices.
Bandwidth: Full unrestricted 10/100 Mbps bandwidth, providing reliable network performance.
Ease of Use: Plug & Play design requires no configuration, allowing for straightforward deployment.
Compliance: Designed to meet full compliance with NEMA TS-1/TS-2 and Caltrans Specifications for Traffic Signal Control Equipment, ensuring reliability.
Manufacturing: Designed and manufactured in the USA, promising quality and reliability.
Form Factor: Available in compact tube or small-size form factors, adaptable to various installation needs.
CNFE1RPT-Specsheet
