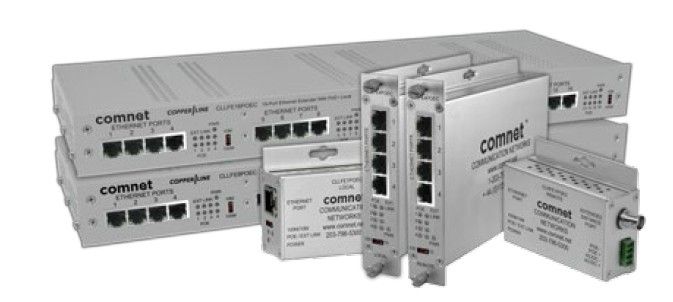

Comnet CLRFE4POEU Remote Four-Channel Ethernet-over-UTP Extender With 30W PSE PoE+
SKU
CLRFE4POEU
Model No
CLRFE4POEU
$2,099.00
Product Highlights
- Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over standard UTP
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
Speak to an expert
The ComNet™ CopperLine® CLRFE4POEU Remote Four-Channel Ethernet-over-UTP Extender with 30W PSE PoE+ is the ideal solution for extending Ethernet connectivity over long distances while providing power to connected devices. With the capability to support multiple channels and comprehensive compatibility with PoE+ standards, it ensures robust, high-speed data transfer and power injection across CAT-5 UTP cabling, whether used in small installations or as part of a larger rack-mounted setup.
ComNet CLRFE4POEU Key Features
- Transmits Ethernet with PoE+: Enables seamless data and power transmission over standard UTP cabling, reducing the need for separate power lines.
- Long Distance Extension: Extends Ethernet up to 3,000 feet at 10 Mbps or 2,000 feet at 100 Mbps, making it suitable for large-scale deployments.
- Wide Temperature Range: Operates from -40°C to +75°C, ensuring reliability in various environmental conditions.
- IEEE 802.3at Compliance: Provides extended Pass-through PoE that meets industry standards, ensuring compatibility with existing network infrastructure.
- Full Bandwidth Support: Delivers 10/100 Mbps bandwidth, accommodating a variety of network applications efficiently.
- Multicast and Jumbo Frame Support: Optimizes network traffic management, enhancing performance for larger data packets.
- Symmetric Bandwidth: Ensures reliable and consistent upload/download speeds with virtually zero packet loss.
- Customizable Data Rate: User-selectable settings for maximum efficiency in bandwidth and distance utilization.
- Compliance with IEEE Standards: Meets all major network protocols ensuring widespread compatibility.
- Comprehensive Testing: Independently certified for compliance with NEMA TS-1/TS-2 traffic signal control equipment specifications.
- LED Status Indicators: Easy monitoring of operational status for quick troubleshooting.
- Rack-Mountable Models Available: Convenient 1RU high design for organized installation in professional environments.
- Made in the USA: Designed and manufactured with high-quality standards for reliability.
Detailed Specifications for ComNet CLRFE4POEU
| Feature | Details |
| Model | CLRFE4POEU |
| Transmission Method | Ethernet over UTP |
| PoE+ Support | Power Injection and Pass-through |
| Distance & Speed | 3,000 ft (10 Mbps) / 2,000 ft (100 Mbps) |
| Operating Temperature | -40°C to +75°C |
| Channel Count | Four Channels |
| Rack Size | 1RU available |
| Standards Compliance | IEEE 802.3at, RFC-2544 |
| Environmental Testing | NEMA TS-1/TS-2 Certified |
| Manufacturing Location | USA |
SKU  | CLRFE4POEU |
|---|---|
| Manufacturer | Comnet |
There are no related videos.
Write Your Own Review
Manuals & Specifications
CLRFE4POEU-Specsheet CLRFE4POEU-Manual
