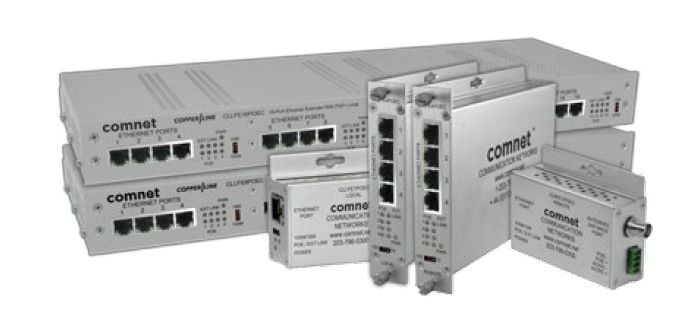

Comnet CLLFE16POEC Local 16 Channel Ethernet-over-COAX Extender With 30W PSE PoE+
SKU
CLLFE16POEC
Model No
CLLFE16POEC
$5,876.64
Product Highlights
- Transmits individual Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over Coaxial cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over Coaxial cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3at standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
Speak to an expert
The ComNet™ CopperLine® CLLFE16POEC Local 16 Channel Ethernet-over-COAX Extender is engineered to provide reliable and efficient transmission of Ethernet data over coaxial cables. With its PoE+ Power Injection capability and flexible distance extension options, this device is ideal for a variety of networking environments. Supporting up to 16 channels of 10/100Mbps Ethernet, it offers high performance and adherence to industry standards, ensuring a robust solution for extending powered devices (PD) over long distances.
ComNet CLLFE16POEC Key Features
- Transmits individually: Enables Ethernet data channels with PoE+ Power Injection or Pass-through PoE+ over coaxial cable for enhanced flexibility.
- Distance Extension: Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps, allowing for long-range networking.
- Temperature Resilience: Operates over an extended temperature range of -40°C to +75°C, suitable for harsh environments.
- Compliance with IEEE Standards: Extended Pass-through PoE conforms to the IEEE 802.3at standard, ensuring compatibility with various devices.
- Full Bandwidth: Provides 10/100 Mbps bandwidth, enabling high-speed data transmission.
- Versatile Frame Support: Supports Multicast, Unicast, and Jumbo Frame for efficient data handling.
- Symmetric Bandwidth: Offers consistent upload and download speeds with minimal packet loss, important for high-performance applications.
- TCP/IP Compliance: Type tested to RFC-2544 standards, ensuring quality network bandwidth performance.
- User-selectable settings: Allows for data rate selection to optimize bandwidth and transmission distance.
- Major Protocol Compliance: Complies with IEEE standards and RFCs for UDP, TCP/IP, and HTTP/HTTPs, ensuring wide compatibility.
- Independent Certification: Tested for compliance with environmental requirements of NEMA TS-1/TS-2 and CALTRANS specifications, guaranteeing durability.
- Operational Status Indicators: LED status indicators provide easy monitoring of operating conditions.
- Rack Mountable: Available in 1RU high rack mounted models for space-saving installation.
- Made in the USA: Ensures high manufacturing standards and quality control.
ComNet CLLFE16POEC Detailed Specifications
| Feature | Detail |
| Channels | Up to 16 channels of 10/100 Mbps Ethernet |
| Transmission Distances | 5,000 feet (1,524 m) at 10 Mbps; 2,000 feet (610 m) at 100 Mbps |
| Operating Temperature | -40°C to +75°C |
| Power Over Ethernet | Supports IEEE 802.3at standard for PoE+ |
| Bandwidth | 10/100 Mbps |
| Frame Types Supported | Multicast, Unicast, Jumbo Frame |
| Packet Loss | Virtually zero packet loss |
| Compliance Standards | RFC-2544 TCP/IP, all major IEEE standards |
| Certification | Certified compliant by an independent laboratory |
| Indicators | LED status indicators for operational monitoring |
| Rack Mounting | Available in 1RU high models |
| Manufacturing Location | Designed and manufactured in the USA |
SKU  | CLLFE16POEC |
|---|---|
| Manufacturer | Comnet |
