Comnet CLFE1EOC Single-Channel Ethernet Over COAX Extender With Pass-through PoE

SKU
CLFE1EOC

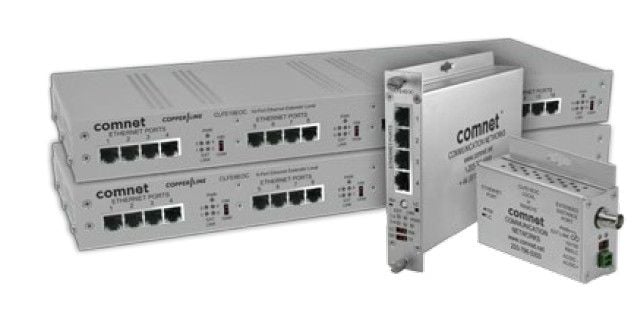

Comnet CLFE1EOC Single-Channel Ethernet Over COAX Extender With Pass-through PoE CLFE1EOC by Comnet
Comnet CLFE1EOC Single-Channel Ethernet Over COAX Extender With Pass-through PoE CLFE1EOC by Comnet
Model No
CLFE1EOC
$280.85
Qty:
Product Highlights
    • Transmits individual Ethernet data channels with Passthrough PoE over Coaxial cable
    • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
    • Extended temperature operation from -40°C to +75°C
    • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
    • Full 10/100 Mbps Bandwidth

The ComNet™ CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

Features

  • Transmits individual Ethernet data channels with Passthrough PoE over Coaxial cable
  • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
  • Extended temperature operation from -40°C to +75°C
  • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • User-selectable data rate for maximum bandwidth and transmission distance utilization
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
  • Designed and manufactured in the USA
  • LED status indicators confirm operating status
  • Available in small-size
SKU  CLFE1EOC
Manufacturer  Comnet
