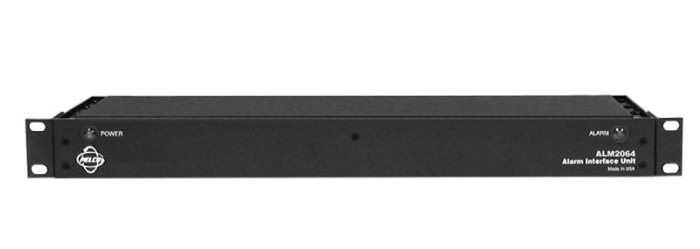

Pelco ALM2064 64 Input Alarm Interface Unit ALM2064 by Pelco

Pelco ALM2064 64 Input Alarm Interface Unit

Pelco ALM2064 64 Input Alarm Interface Unit

by Pelco
  • Pelco ALM2064 64 Input Alarm Interface Unit ALM2064 by Pelco Pelco ALM2064 64 Input Alarm Interface Unit ALM2064 by Pelco

SKU: ALM2064

Model #: ALM2064

Availability: Usually ships the next business day

$896.15

Availability: In stock

Low Price Guarantee

Quick Overview



    • 64 Alarm Contact Inputs

    • Connects to the CM6800 Series Matrix Switchers Using Pelco M Protocol

    • Uses RS-485 Communication Interface

    • Alarm Inputs Can Be Configured for Supervised or Unsupervised Mode

    • Powered by an Autoranging Power Supply


UPC: 700880082812

  • Express Checkout:
  • Checkout with PayPal

See any errors on this page? Let us know.

Product Details

The ALM2064 alarm interface unit connects directly to the System 6800 matrix switcher/controller. Each unit provides monitoring capability for up to 64 external alarm inputs. Using Pelco’s proprietary M protocol, the alarm unit communicates with Pelco’s CM6800 matrix switchers through an RS-485 communication interface. The alarm unit can be located remotely from the system controller and still communicate back to the central system when an alarm occurs. Up to four alarm interface units can be cascaded to provide multiple alarm contact points on a single M-port connection. Alarm inputs on each ALM2064 unit can be configured in two groups of 32 each for supervised or unsupervised mode. The ALM2064 provides a relay output on the rear panel. The alarm unit will activate a peripheral device connected to this output when a valid alarm condition is sensed. The alarm interface unit is powered by an autoranging power supply. The ALM2064 occupies one rack unit (1.75 inches or 4.45 cm), accommodating multiple types of mounting.

Features

  • 64 Alarm Contact Inputs
  • Connects to the CM6800 Series Matrix Switchers Using Pelco M Protocol
  • Uses RS-485 Communication Interface
  • Multiple Units Can Be Cascaded to Provide Multiple Alarm Contact Points on a Single M-Port Connection
  • Alarm Inputs Can Be Configured for Supervised or Unsupervised Mode
  • Supports Imports From Normally Open (N.O.) or Normally Closed (N.C.) Contacts
  • Powered by an Autoranging Power Supply

Downloads

  ALM2064-Specsheet

Product Specifications

SKU  ALM2064
Manufacturer  Pelco
