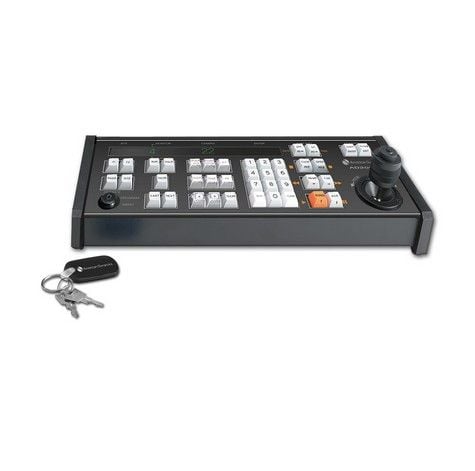

American Dynamics AD2089 RS232 Keyboard with Macro Keys and Digital Recorder Control, Desktop, 120 VAC
- Variable-speed, vector solving, twist-to-zoom joystick for pan/tilt/zoom control
- Camera, monitor, DVR, VCR and satellite site selection
- 1000 user-defined macros
- Eight customizable macro keys
- DVR control
The AD2089 series includes robust, full-function CCTV system keyboards available in desktop and rack mount versions andare compatible with MegaPowerâ„¢ Matrix Switcher/ControllerSystems and Intellex Digital Video Management Systems. The keyboards feature full-travel keys that provide true tactile feel. Dedicated keys enable user log-on, intuitive site and monitor/DVR/VCR selection, and camera or salvo call-up. All system activities, including tours and alarms, can be controlled directly from the keyboard. AD2089 keyboards provide userdefined macro keys that make even the most complex and demanding installations easy to manage. Each operator can customize his or her own keyboard to perform a multitude of system tasks via simple, easy to remember keystrokes.
Features
- Variable-speed, vector solving, twist-to-zoom joystick for pan/tilt/zoom control
- Camera, monitor, DVR, VCR and satellite site selection
- 1000 user-defined macros
- Eight customizable macro keys
- DVR control
- LED display with brightness control
- Tactile full-travel keys
- Preset, pattern and auxiliary control
- Joystick push-button for dome flip function
- Lens control
- Tour and salvo control
- Alarm control
- Supports American Dynamics Intellex® digital video management systems
