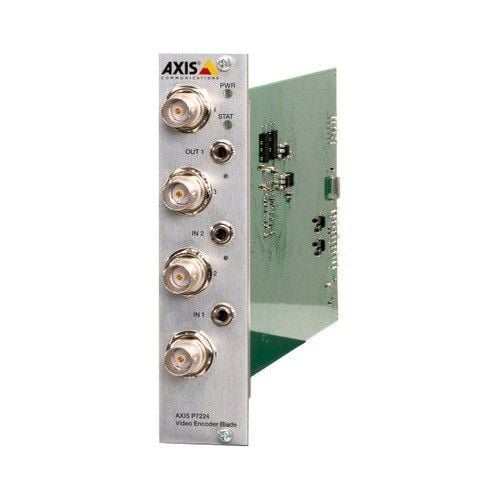

Axis 0418-001 P7224 Four-Channel Video Encoder Blade
SKU
0418-001
Model No
P7224 Video Encoder Blade
$358.45
Product Highlights
- Full frame rate in all resolutions
- Simultaneous H.264 and Motion JPEG
- High resolution quad-view
- Two-way audio
- PTZ support
Speak to an expert
The 0418-001 from Axis is a cost-effective four-channel video encoder blade with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems. AXIS P7224 supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. Configurable inputs/outputs can be connected to external relays and sensors for activating lights, locking/unlocking doors etc. AXIS P7224 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered by the rack, which simplifies installation.
Axis P7224 Video Performance Features
- Full frame rate: Ensures smooth video playback across all resolutions, enhancing the viewing experience.
- Simultaneous H.264 and Motion JPEG: Offers flexibility in video compression methods, allowing users to choose based on their needs.
- High-resolution quad-view: Provides a comprehensive view of multiple channels simultaneously, improving monitoring efficiency.
- Two-way audio: Facilitates communication through the video feed, adding more functionality to the device.
- PTZ support: Compatible with pan/tilt/zoom cameras for comprehensive surveillance capabilities.
Axis P7224 Detailed Specifications
| Model | Axis 0418-001 P7224 |
| Video channels | 4 channels |
| Video compression | H.264, Motion JPEG |
| Audio support | Two-way audio |
| Input/output | Configurable inputs/outputs for external relays and sensors |
| PTZ control | RS-422 and RS-485 support |
| Power source | Powered by rack |
| Installation | Simplified installation process |
| Best suited for | Large analog video installations with existing IP infrastructure |
SKU  | 0418-001 |
|---|---|
| Manufacturer | Axis |
| No Of Channels | 4 Channel |
Audio Inputs  | 3.5mm Mini |
| Resolution | 176 X 144, 320 X 240, 352 X 288, 640 X 480, 704 X 480, 720 X 480, 1024 X 768, 1280 X 960, 1280 X 1024, 1400 X 1050, 1536 X 1152 |
| Compression Method | H.264, MJPEG, MPEG-4 |
| Protocols | ARP, DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, NTP, QoS layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SOCKS, TCP, UDP, UPnP |
| COM Ports | RS-422, RS-485 |
| Features | Aspect Ratio Correction, De-Interlace, Power Over Ethernet, Privacy Masking, PTZ Support, Video Termination, Temporal Noise Filtering |
| Signal | NTSC/PAL |
| connector | 4x analog composite video BNC inputs1x Terminal block for four configurable external inputs/outputs (on back of rack)1x Terminal blocks for RS-485/422 (half duplex, on back ofrack)2x 3.5 mm jacks for microphone or line input (mono)1x 3.5 mm jack for |
| Frame rate | H.264: 30/25 (NTSC/PAL) fps 15 fps in quad view in full resolutionMJPeG: 30/25 (NTSC/PAL) fps 15 fps in quad view in full resolution |
| Authentication | Yes |
