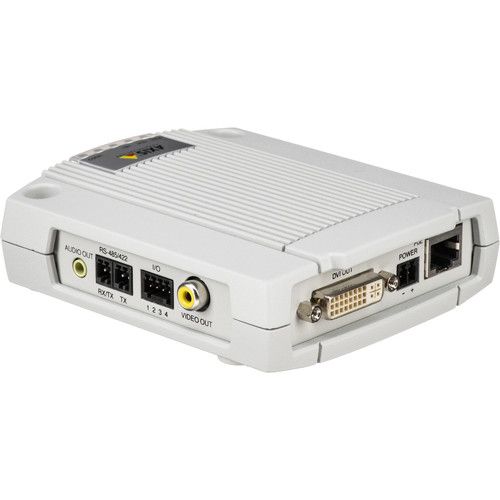

Axis 0319-004 P7701 1 Channel Network Video Decoder
SKU
0319-004
Model No
P7701
$569.00
Product Highlights
- Decodes H.264, MPEG-4 and Motion JPEG
- Digital or analog video output
- Sequence mode and auto-connect on alarm
- High-quality audio, Power over Ethernet
Speak to an expert
The Axis 0319-004 P7701 1 Channel Network Video Decoder is designed to provide exceptional video quality and seamless integration into various applications. With its advanced capabilities such as multiple compression formats, flexible installation options, and user-friendly design, this decoder elevates the monitoring experience while saving time and effort for users across different settings.
Axis 0319-004 P7701 Camera Features
- Decoding Capability: Supports H.264, MPEG-4, and Motion JPEG formats for versatile video playback that ensures compatibility with various video sources.
- Output Options: Features both digital and analog video outputs, enabling easy integration into existing systems and ensuring high-quality video display.
- Advanced Operation Modes: Includes sequence mode and auto-connect on alarm, enhancing operational efficiency by simplifying monitoring tasks.
- High-Quality Audio: Delivers exceptional audio quality, providing a complete video experience for enhanced situational awareness.
- Power over Ethernet: Simplifies installation by powering the device through Ethernet, reducing cable clutter and installation time.
Detailed Specifications for Axis 0319-004 P7701
| Model | Axis 0319-004 P7701 |
| Video Decoding Formats | H.264, MPEG-4, Motion JPEG |
| Video Output | Digital and Analog |
| Operating Modes | Sequence Mode, Auto-Connect on Alarm |
| Audio Quality | High-quality audio support |
| Power Supply | Includes Power over Ethernet |
| Installation Options | Wall mountable or standalone |
| Operating Temperature | Wide operating temperature range |
| Frame Rate | D1 resolution at 30/25fps |
SKU  | 0319-004 |
|---|---|
| Manufacturer | Axis |
| No Of Channels | 1 Channel |
Resolution  | 640 X 480, 720 X 480, 800 X 600, 1280 X 720 |
| Compression Method | H.264, MJPEG |
| COM Ports | RS-422, RS-485 |
| Connector | RCA, DVI-I, RJ-45, DC terminal block, I/O terminal block,RS-485/ RS-422 |
| Audio Line Output | YES , 3.5 mm |
| Frame Rate | 30/25 (NTSC/PAL) fps in up to D1 resolution for all compressionstandards. Up to 15 fps in 720p resolution in Motion JPEG |
| Features | Power Over Ethernet |
