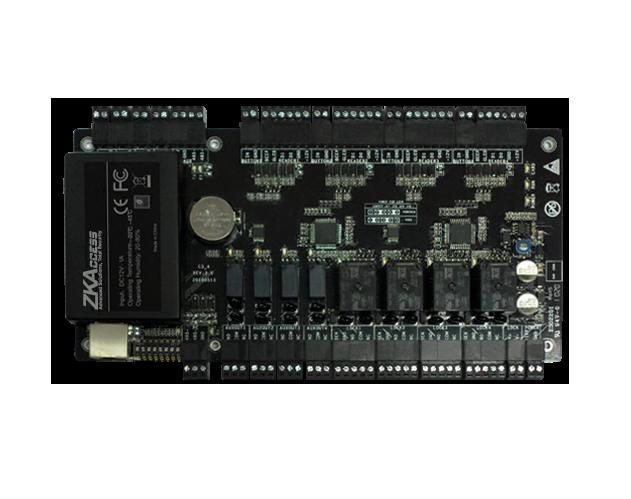

ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3-100's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-100 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
ZKAccess US-C3-400 BUN - Important Features
Over-current protection: Safeguards the power supply and input/output terminals against electrical faults, ensuring longevity and reliability.
Reliable communication: Utilizes TCP/IP or RS-485 Serial communication to maintain a robust network of controllers for consistent performance.
Supports multiple formats: Works with various Wiegand formats and connects to ZK readers as well as HID, Mifare, and generic ID card readers, providing flexibility in access solutions.
Versatile connectivity: Interfaces easily with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators to enhance overall security.
Integration capabilities: Seamlessly integrates with other security systems like CCTV, Intrusion Detection, Fire Alarm Release, and elevator control for comprehensive security coverage.
User-friendly programming: ZKAccess Software provides an intuitive interface for easy setup and management.
Web-based management: Allows users to manage the system via a browser without the need for installing software on each client, simplifying administration.
Dynamic door logic programming: Special logic between doors can be created using easy pull-down menus without needing special scripts or code.
Real-time management: Software enables real-time door status updates and remote control for door operations, with alarms reported for forced or extended openings.
Advanced access control: Features built-in support for anti-passback, Dual and multi-Card Authentication, and Duress Mode for enhanced security measures.
ZKAccess US-C3-400 BUN - Detailed Specifications
Communication Method
TCP/IP or RS-485 Serial
Cardholder Capacity
30,000
Protection Features
Over-current, over-voltage, reversal protection
Supported Formats
Wiegand, ZK, HID, Mifare, generic ID
Integration
CCTV, Fire Alarm, Intrusion Detection, Elevator Control
