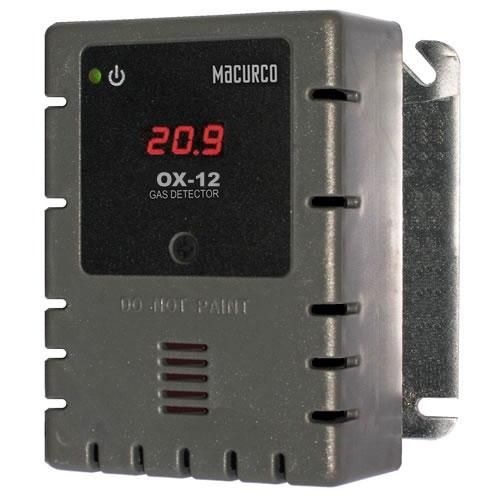

Macurco OX-12 Oxygen O2 Fixed Gas Detector Controller Transducer

The Macurco OX-12 is a dual relay Oxygen (O2) detector, controller, and transducer. The OX-12 has selectable 4-20 mA output, buzzer, and digital display options. It is an electronic detection system used to measure the concentration of Oxygen and provide feedback and automatic exhaust fan control to help maintain appropriate Oxygen concentrations in commercial applications. The OX-12 is a low-level meter capable of detecting from 0-25% by volume of Oxygen.

Macurco OX-12 Key Features

• Installation: Mounts on a standard 4" x 4" electrical box for easy setup.
• Relay Control: 5 A SPDT fan relay controls valves, louvers, or exhaust fans, ensuring effective ventilation management.
• Alarm Connectivity: 0.5 A N.O. or N.C alarm relay connects to warning devices or control panels, providing vital alerts for safety.
• Compatibility: Features a 4-20mA current loop, compatible with the Macurco DVP-120 Control Panel for integrated monitoring.
• Calibration: Factory calibrated for accuracy and reliability right out of the box.
• Supervised Design: Detector issues trigger the fan and alarm relay, enhancing system safety.
• Field Calibration: Optional calibration test kit allows for convenient field calibration and testing of the OX-6.
• Safety Compliance: ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1, ensuring high safety standards.
• Durable Housing: Comes in a dark gray housing for a professional appearance and lasting durability.

Macurco OX-12 Detailed Specifications
