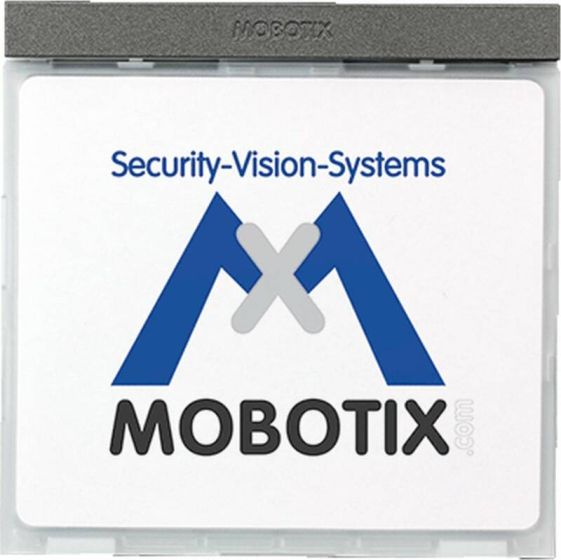

Mobotix MX-2wirePlus-Info1-EXT-DG Module Mx2wire Technology Dark Gray

The dark gray Mx2wire Info Module from MOBOTIX is equipped with Mx2wire technology and a second Mx2wire unit for mounting inside the building. It offers users not only the standard info module functions but also the option to connect and supply power to the door station via 2-wire cabling instead of a network cable. Using the Mx2wire system, an Ethernet network with PoE can be established using existing cables up to 1,640.4 (500m). You can utilize a 2-wire cable that is no longer in use (analog telephone line, antenna cable or bell wire, for instance) to connect a 10/100 Mb/s Ethernet device such as a PC, WLAN, IP camera, IP telephone, or IP door station without having to lay any new cables or implement any other constructional measures. An (identical) Mx2wire unit is required at both ends of the cable, and it automatically configures itself as either the sender or the receiver. The significant additional benefit of Mx2wire is that in addition to data, the power to operate PoE end devices (Power over Ethernet according to the IEEE 802.3af standard, a MOBOTIX network camera, for example) can also be transferred via the 2-wire cable. Mx2wire is supplied via PoE from the network input cable. The connected end devices are supplied with up to 7W via PoE. Mx2wire does not, therefore, require its own power supply, as the network distributor (switch) typically supplies power over the data cables (PoE) so that the two Mx2wire units, as well as the standard PoE end device, are supplied power.

Features

• 2-wire cabling: Uses 2-wire cables to connect 10/100 MB Ethernet devices, allowing for versatile options in installations.
• Device compatibility: Suitable to connect devices such as PCs, WLANs, IP cameras, IP telephones, and IP door stations, enhancing connectivity.
• Extended data transfer distance: Supports data transfer up to 1640.4' (500m) with data rates up to 30 Mb/s, offering flexibility in placement.
• PoE supply: Connected devices are powered with up to 7W via PoE, eliminating the need for additional power sources.
• Easy installation: Simple installation in standard socket frames or surface-mounted sockets, streamlining the setup process.

MOBOTIX MX-2wirePlus-Info1-EXT-DG Module Camera Features

MOBOTIX MX-2wirePlus-Info1-EXT-DG Module Detailed Specifications
