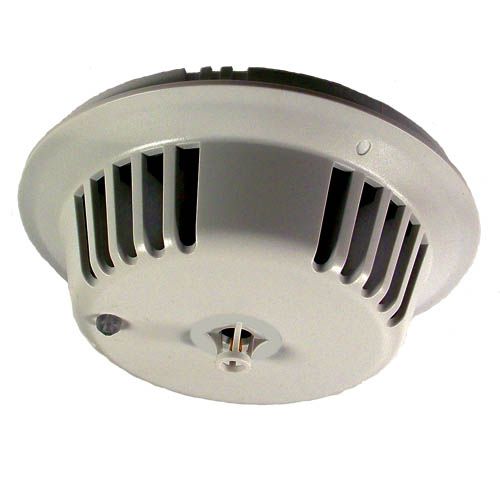

Bosch F220-135F Electronic Fixed Temperature Heat Detector

An electronic rate-of-rise, fixed temperature heat detector that initiates an alarm when the ambient temperature exceeds +135°F (+57°C) or when the ambient temperature increases by +15°F (+8.3°C) or more in less than 1 minute. The detectors use low current electronic circuitry, so they can connect to 12 VDC nominal or 24 VDC nominal power source circuits. When mounted on the appropriate F220-B6 Series Mounting Base, the F220 Heat Detectors provide general property protection from fire.

Bosch F220-135F Heat Detector Features

• Two-wire or four-wire bases: Adaptable installation based on specific configurations, enhancing compatibility with existing systems.
• 50 ft (15.2 m) maximum spacing between detectors: Efficient layout design reduces the number of detectors needed for coverage, minimizing installation costs.
• Visible identification of model: F220-135F = gray ring: Easy model identification simplifies maintenance and service procedures.
• Tamper detection: Increased security ensures tampering is detected promptly, maintaining the system's integrity.
• Dual color LED: Provides clear visual indicators of operational status, allowing for immediate recognition of detector condition.

Bosch F220-135F Detailed Specifications
