Linear 620-101357 eMergeMNODE V3 eMerge MicroNode Compact Expansion Node with Embedded ACM

The eMerge MicroNode V3 is an advanced compact expansion node designed to enhance access control systems with unmatched convenience and flexibility. It supports two card readers, four inputs, and four outputs, all within a sleek 7-inch enclosure. The MicroNode offers dual power options through standard 12 VDC or Power-over-Ethernet (PoE), ensuring seamless integration into existing infrastructures while maintaining secure communications over public networks. Its automatic discovery by eMerge Network Controllers simplifies deployment and configuration, making it an ideal solution for upgrading legacy systems without extensive modifications.

Linear 620-101357 eMerge MicroNode Features

• Access Points: Full support for 2 access points allows greater management of access locations.
• Versatility: Use anywhere in place of a standard eMerge Expansion Node (EXN) for easy upgrades.
• Programmable Inputs: 4 Input points with programmable levels of supervision provide flexible access control options.
• Relay Outputs: 4 Relay outputs for lock control or general use, enhancing device functionality.
• Power Options: Wet/dry selection for direct strike/mag lock power, adapting to various setup requirements.
• Credential Support: Support for up to 20,000 access credentials, accommodating larger installations.
• Power over Ethernet: PoE or 12v local power allows for flexible installation and centralizes backup power.
• Network Appliance: Native TCP/IP network appliance facilitates easy integration into existing networks.
• Data Security: Built-in authentication software ensures secure data communication across networks.

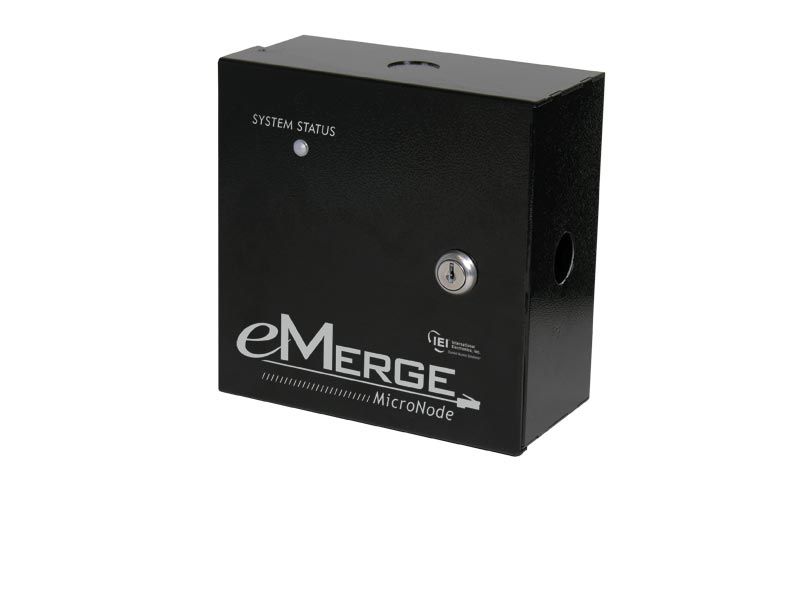

• Compact Design: 7-inch square metal enclosure protects internal components and fits discreetly in various setups.
• Automatic Discovery: Automatically discoverable by eMerge Network Controllers for quick setup.
• Web Configuration: Visual configuration using any standard Web browser simplifies management.
• Device Powering: 12v DC output for powering PIR and similar devices enhances overall system integration.
• Security Features: Tamper switch and status indicator included for improved security monitoring.
• Integration Capability: Auxiliary RS-485 port for legacy system integration enables smooth upgrades.
• Battery Backup: 10-year onboard lithium memory and clock backup battery ensures reliable operation during power interruptions.

Linear 620-101357 eMerge MicroNode Specifications
