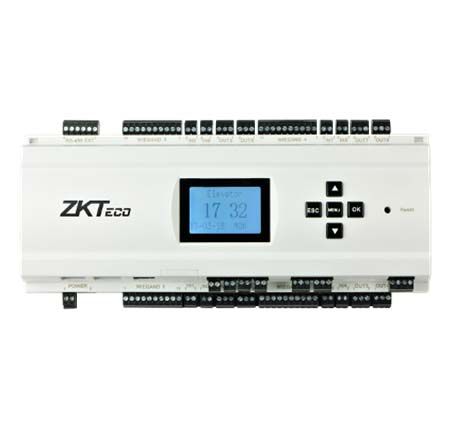

ZKAccess EC10 Elevator Control Module

Designed specifically for elevator control, the EC10 panel and EX16 floor extension boards provide customers the most secure, scalable, versatile and affordable access control solution available today for elevators. Floor access can be restricted based on various user credentials including fingerprint, proximity card and/or password. Pre-defined time schedules can also be used to control floor access. During normal visitor/business hours, unrestricted floor access can also be permitted (aka Passage mode). The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Elevator Floor Extension Boards restrict access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combined, a total fifty eight (58) floors can be controlled with a single US10 bundle. Note US10 panels can be daisy-chained together to control as many floors as desired. Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK available for software companies wishing to integrate the system.

ZKAccess EC10 Elevator Control Module Features

• Access Restriction: Can restrict access up to ten floors, ensuring enhanced security for sensitive areas.
• Expandable System: Supports up to three EX16 expansion boards, allowing control of an additional sixteen floors for versatile scalability.
• User Credential Flexibility: Floor access can be restricted based on various user credentials including fingerprint, proximity card and/or password for advanced access control.
• Time Scheduled Access: Pre-defined time schedules can be used to control floor access, allowing for efficient management of visitor traffic.

ZKAccess EC10 Detailed Specifications
