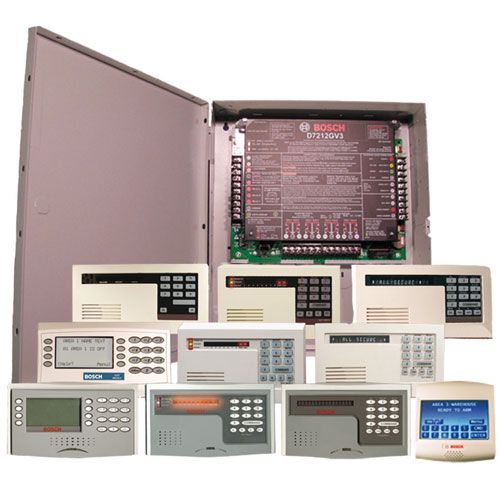

Bosch D7212GV3 Control Panel

Model No
D7212GV3
$235.00
Qty:
Product Highlights
    • Fully integrated intrusion and fire functions allow users to interface with one system instead of two
    • Conettix IP-based communication options provide high-speed, secure alarm transport and control through connection of up to two wired (DX4020) and/or wireless (ITS-DX4020-G) network interfaces
    • Four programmable areas with perimeter and interior partitioning
    • 40 points with flexible configuration options to meet application specific requirements
    • Commercial Wireless allows up to 32 RF points

The D7212GV3 Control Panel delivers a powerful new solution for intrusion (commercial and residential) and residential fire alarm system applications. Monitor alarm points for intruder or fire alarms while operating user command centers and other outputs. The D7212GV3 Control Panel includes a communicator that sends event reports to selected public switched telephone network (PSTN), IP network, or general packet radio service (GPRS) destinations through four programmable route groups. Program all system functions locally or remotely (attended or unattended) through Remote Programming Software (RPS); program critical parameters on site through a keypad. The D7212GV3 Control Panel provides up to 40 individually identified points. Each point accommodates normally-open and normally-closed devices with end-of-line (EOL) resistor supervision. Each point is programmable for fire, fire supervisory, or intrusion applications.

Features

  • Fully integrated intrusion and fire functions allow users to interface with one system instead of two
  • Conettix IP-based communication options provide high-speed, secure alarm transport and control through connection of up to two wired (DX4020) and/or wireless (ITS-DX4020-G) network interfaces
  • Four programmable areas with perimeter and interior partitioning
  • 40 points with flexible configuration options to meet application specific requirements
  • Commercial Wireless allows up to 32 RF points
SKU  D7212GV3
Manufacturer  Bosch
Zone40
Touch ScreenNo
Mobile Platform  Windows Mobile
Backlit KeypadNo Light
User Codes99
