Bosch Octal Driver Modules, D7048
SKU
D7048
Model No
D7048
$151.00
Product Highlights
- Compatible with the D7024, FPD-7024, or FPA-1000 FACPs
- D7048 mounts inside the FACP enclosure; no separate enclosure needed
- Each driver output is fully programmable
- Up to two modules are supported by the FACP
Speak to an expert

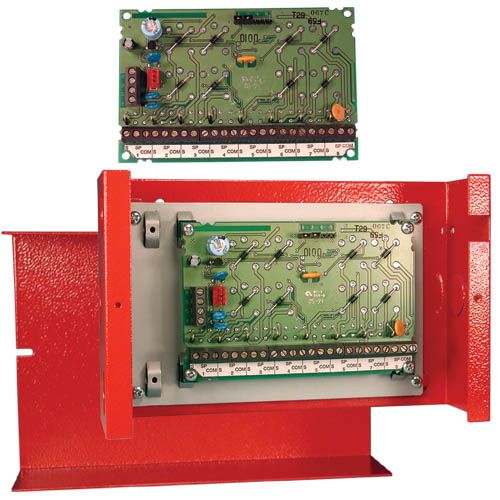

The D7048 Octal Driver Modules are essential components designed to enhance the functionality of Bosch Fire Alarm Control Panels (FACPs). With eight open-collector transistor outputs, these modules ensure reliable operation by enabling flexibility in powering various devices like relays and LEDs. With easy integration and programmable outputs, the D7048 is ideal for efficient fire alarm management.
Bosch D7048 Octal Driver Modules Features
- Compatibility: Compatible with the D7024, FPD-7024, or FPA-1000 FACPs, ensuring seamless integration with existing systems.
- Space-saving Design: D7048 mounts inside the FACP enclosure, eliminating the need for a separate enclosure and saving installation space.
- Programmable Outputs: Each driver output is fully programmable, providing the flexibility to tailor operations based on specific system requirements.
- Scalability: Supports up to two modules by the FACP, allowing for scalable fire alarm system expansions.
D7048 Octal Driver Modules Specifications
| Output Type | Open-collector transistor outputs (current sinks) |
| Number of Outputs | Eight |
| Integration | Connects to D7024, FPD-7024, FPA-1000 FACPs via option bus |
| Activation | Outputs can be activated by various system events |
| Mounting | Mounts inside FACP enclosure |
| Maximum Modules | Two per FACP |
SKU  | D7048 |
|---|---|
| Manufacturer | Bosch |
There are no related videos.
Write Your Own Review
Manuals & Specifications
D7048-Specsheet D7048-Manual D7048-Quick-Selection-Guide
