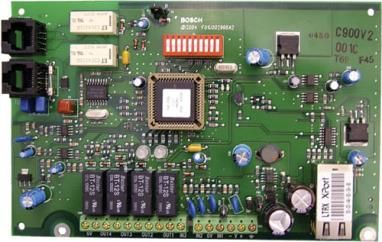

Bosch C900V Dialer Capture Ethernet Module

The Conettix C900V2 Dialer Capture Ethernet Module enhances the functionality of control panels with a standard digital dialer format by providing secure end-to-end communication. This module seamlessly connects digital dialers to the Public Switched Telephone Network (PSTN) and Ethernet networks, ensuring data integrity whether dialed over a telephone line or through the C900V2. It supports various data formats and empowers control panels to operate efficiently over IP networks like LAN, WAN, or the Internet.

Bosch C900V2 Dialer Capture Features

• Multi-Format Support: Captures alarm and event data from various dialer-based control panels using formats such as CONTACT ID, SIA, Modem II, Modem IIe, Modem IIIa2, and Pulse, ensuring broad compatibility.
• Data Integrity: Performs full data transmissions without altering the data, maintaining accurate and reliable communication for security monitoring.
• Flexible Voltage Range: Operates on a voltage range of 12 VDC to 24 VDC, providing versatility for different system requirements.
• IP-Based Communication: Re-routes signals via UDP/IP-based data networks, facilitating efficient and modern communication methods.
• Easy Ethernet Connection: Features a convenient RJ-45 Jack for simple connection to Ethernet networks, streamlining installation and integration.

Bosch C900V2 Dialer Capture Detailed Specifications
