Bosch B4512-CC-920 Kit Includes B4512, B10, CX4010, B440, B920

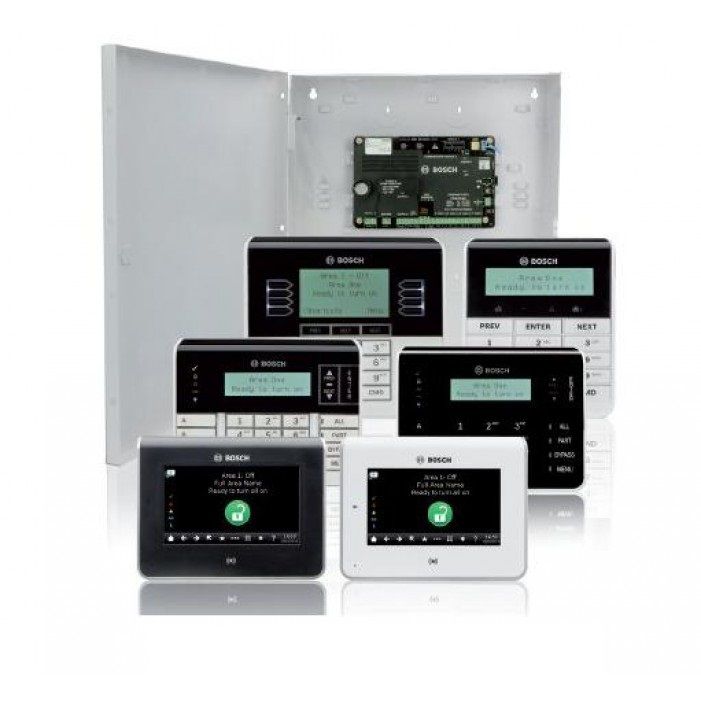

The Bosch B4512-CC-920 Kit is a comprehensive security solution designed to integrate intrusion and residential fire monitoring into one user-friendly interface. It features up to 28 individually identified points and the flexibility of hardwired or wireless installation options. With robust communication capabilities over IP and cellular networks, customizable user access, and intuitive operation, this kit ensures effective monitoring of sensitive areas like showrooms or inventory spaces.

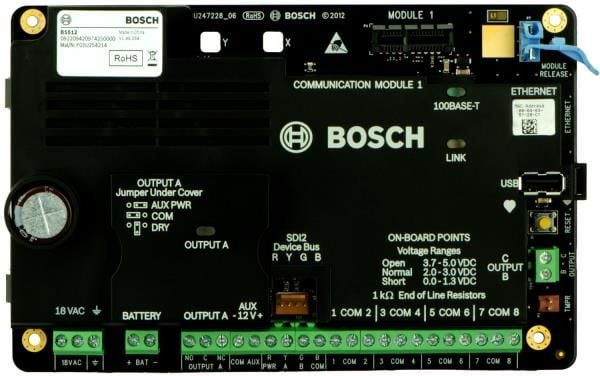

Bosch B4512 Control Panel Features

• Supports multiple points: Supports up to 28 points using a combination of hardwired or wireless points for installation flexibility and 2 areas with perimeter and interior control.
• Advanced communication: On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP and Universal Plug and Play.
• Installer-friendly: Installer-friendly features including on-board USB for easy on-site RPS programming, plus plug-in PSTN and Cellular communication modules for simple installation and future proof upgrades.
• Real-time notifications: Notifications with email and text messaging, and the Remote Security Control app for Android and iOS mobile devices.
• User-friendly interface: Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy.

Bosch B10 Enclosure Features

• Durable construction: White, steel enclosure for robust security.
• Security options: Accepts an optional lock and tamper switch for enhanced protection.
• Compact dimensions: Measures 35.6 cm x 31.8 cm x 7.6 cm (14 in x 12.5 in x 3 in) for convenient placement.

Bosch CX4010 Transformer Features

• North America compatibility: Suitable for use in North America.
• Voltage conversion: Converts 110 VAC primary voltage input to 18 VAC, 22 VA secondary input for reliable operation.

Bosch B440 Communication Module Features

• Secure communication: Secure Conettix IP communication from compatible Bosch panels to Bosch receivers using Verizon 3G EVDO/CDMA.
• Remote capabilities: Remote programming and monitoring of compatible Bosch panels.
• Notification options: Personal SMS message and e-mail notification options for timely alerts.
• Configuration simplicity: Configured directly from Bosch Remote Programming Software (RPS) eliminating the need for separate configuration.
• Status indicators: Simple LED status information and advanced keypad diagnostics available for quick monitoring.

Bosch B920 Keypad Features

• LCD display: 2-line LCD display with up to 32 character point, user, and area names enhances clarity.
• User-friendly menu: Simple menu-style user interface with dedicated function buttons for common commands, including status indication.
• On-screen help: Situation sensitive on-screen help makes system operation simple and easy.
• Visual indicators: Highly visible on (arm)/alarm, ready to turn on (arm), power and gas alarm indicators improve usability.
• Easy installation: Simple installation with self-locking base and chassis design, plus built-in bubble level for accuracy.

Bosch B4512-CC-920 Kit Specifications
