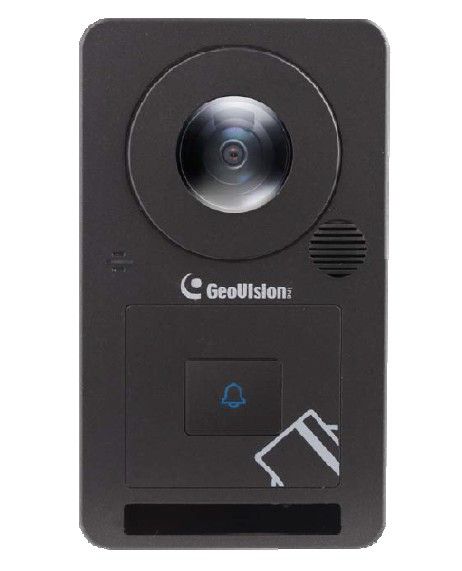

Geovision GV-CS1320 Camera Reader Controller

Introducing the Geovision GV-CS1320 2MP H.264 Camera Reader Controller, an innovative all-in-one access control solution that combines advanced facial recognition with card reading capabilities. This device supports up to 40,000 users and features a built-in 2 MP camera for enhanced security. With its wide-angle lens, real-time notifications, and seamless integration with GV-ASManager, GV-CS1320 ensures effective monitoring and communication, making it ideal for modern access control needs.

Geovision GV-CS1320 Camera Features

• 2 MP progressive scan super low lux CMOS: Delivers high-quality images even in low light conditions, ensuring reliable face detection and identification.
• Minimum illumination at 0.02 lux: Provides clear night-time video footage for enhanced security.
• Dual streams from H.264 and MJPEG: Ensures efficient video streaming and storage management.
• Up to 15 fps at 1920 x 1080: Maintains smooth video recording performance for efficient surveillance.
• Day and night function (with removable IR-cut filter): Automatically adjusts to lighting conditions for consistent image quality.
• Built-in IR with effective distance up to 3 m (9.84 ft): Enhances night vision capabilities for clear visuals even in darkness.
• Ingress protection (IP66): Provides durability against dust and water jets, making it suitable for outdoor use.
• 12V DC, 2.5A / PoE+ (IEEE 802.3at) Built-in microphone and speaker: Facilitates remote communication and monitoring.
• Wide Dynamic Range (WDR): Captures details in high-contrast lighting conditions.
• Built-in micro SD card slot: Allows for local storage of video data, enhancing flexibility.
• Provides 180° panorama view: Offers broad coverage with a single camera.
• ONVIF (Profile S, C) conformant: Ensures interoperability with a variety of surveillance systems.

Geovision GV-CS1320 Reader Features

• Built-in 13.56 MHz Reader (Mifare DESFire, MIFARE Plus and MIFARE Classic): Supports multiple card types for versatile access solutions.
• Access by card plus face detection: Adds an extra layer of security through dual authentication methods.
• RS-485 and network interface for connecting up to 2 readers: Expands system capabilities as needed.

Geovision GV-CS1320 Access Control Features

• Enabling different access control modes according to the Authentication Schedule: Flexibility with modes like Card only and Card and Face Mode for customizable security settings.
• 1 door (one-way and two-way control): Adaptability for various entry scenarios.
• Bell button (touch pad) for talk mode: Facilitates communication with visitors easily.
• Receiving live view and capturing snapshots when card is presented: Immediate visual verification enhances security measures.
• Anti-passback (APB) support: Prevents unauthorized re-entry, ensuring tight security.
• 2 inputs, dry contact (Door Sensor / Exit Button): Allows for comprehensive monitoring of entry points.
• 1 relay outputs (30V DC, 0.5A): Enables easy integration with existing door locks or systems.

Geovision GV-CS1320 Detailed Specifications
