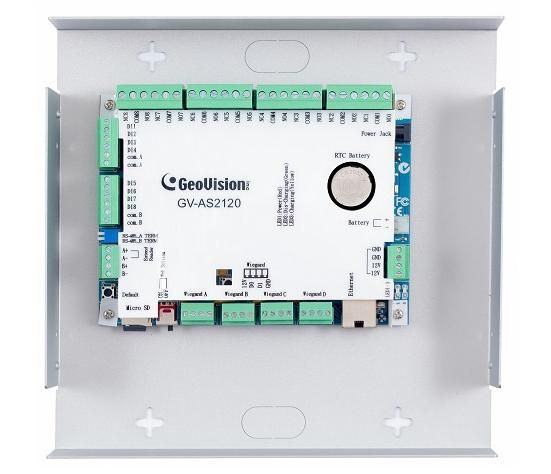

Geovision GV-AS2120 IP Control Panel

The Geovision 84-AS21200-0010 IP Control Panel is a versatile and robust solution for your security needs, offering advanced control over multiple access points. With its unique support for both one-way and two-way control, this control panel is designed to provide seamless and efficient management of doors, parking gates, and more, ensuring both convenience and security for users.

Geovision 84-AS21200-0010 Control Panel Features

• One-way control: Controls 4 doors, allowing for easy management of access points.
• Two-way control: Supports 2 doors via Wiegand only and 4 doors using Wiegand, RS-485, and network connections for flexible usage.
• Wiegand card readers: Compatible with 4 Wiegand card readers ranging from 26 to 64 bits, enhancing security with versatile access methods.
• Fingerprint readers: Integrates with 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 for added biometric security.
• Digital inputs and relay outputs: Features 8 digital inputs and 8 relay outputs for comprehensive system integration.
• Multi-functional applications: Ideal for controlling doors, parking gates, and elevator call button access, offering flexibility in security management.
• Tampering alarm support: Includes a tampering alarm to safeguard against unauthorized tampering.
• Power options: Operates on DC 12V, 3A or via PoE+ (IEEE 802.3at) for versatile power supply solutions.
• PoE+ capacity: Supports a maximum of 2 doors when using PoE+ at 25.5W, optimizing power consumption.

Geovision 84-AS21200-0010 Detailed Specifications
