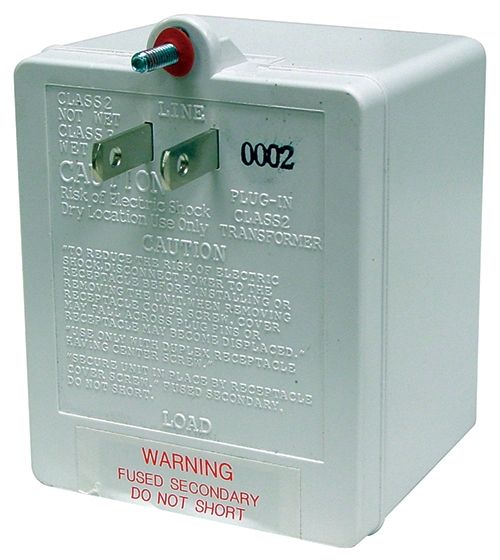

Altronix TP1650 Plugin Transformer, 16VAC @ 50VA
SKU
TP1650
Model No
TP1650
$22.85
Product Highlights
- 115VAC 50/60 Hz, 0.5 amp
- 16.5VAC/50VA (3 amp)
- Operating temperature: 0°C to 49°C ambient
- 25.34BTU/Hr
- System AC input VA requirement: 57.5VA
Speak to an expert
The TP1650 from Altronix is a plug-in transformer designed to deliver reliable performance at 16VAC/50VA, with a 115VAC input. This UL-listed transformer is ideal for powering various low voltage applications while ensuring safety and efficiency.
Altronix TP1650 Transformer Features
- Input Voltage: 115VAC 50/60 Hz, 0.5 amp - Ensures compatibility with standard household electrical systems.
- Output Power: 16.5VAC/50VA (3 amp) - Delivers sufficient power for a variety of applications.
- Operating Temperature: 0°C to 49°C ambient - Suitable for various environments while maintaining optimal functionality.
- Heat Dissipation: 25.34BTU/Hr - Designed to operate efficiently without overheating, enhancing durability.
- System VA Requirement: 57.5VA - Provides a clear indication of system capacity needs for better planning.
Altronix TP1650 Detailed Specifications
| Input Voltage | 115VAC 50/60 Hz |
| Output Voltage | 16.5VAC |
| Output Current | 3 amp |
| Power Rating | 50VA |
| Operating Temperature | 0°C to 49°C |
| Heat Generation | 25.34BTU/Hr |
| System VA Requirement | 57.5VA |
SKU  | TP1650 |
|---|---|
| Manufacturer | Altronix |
| Input Current | 115VAC |
| Output Current | 3.0 Amps |
| Enclosure | None |
There are no related videos.
Write Your Own Review
Manuals & Specifications
TP1650-Specsheet TP1650-Installation-Instruction
