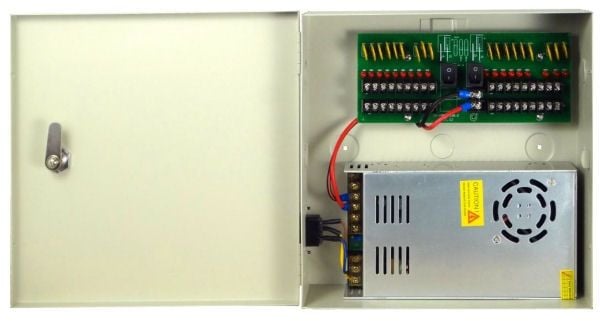

SecurityTronix ST-PBX18/20A-PTC Camera Power Supply, 18 Outputs, 12VDC, 20A

The ST-PBX18-20A-PTC is a professional grade power distribution box designed to meet the needs of the security industry. The unit provides a total of 12VDC at 20 amps to 18 distribution ports. It includes individual ‘power on’ status LED per channel, individual port protected PTC-type output fuses, individual port current protection and a digital switched-mode, regulated power supply for high efficiency and low temperature operation. Output voltage can be adjusted from 11.8VDC up to 13VDC to account for longer cable runs and higher-than-usual service voltages at the installation property.

Features

• Outputs: 18 Camera outputs ensure extensive connectivity options for your security cameras.
• Input Voltage: 110VAC - 220VAC, 50-60Hz offers versatile power compatibility for different locations.
• Input Connector: IEC 3-pin AC cord facilitates easy and secure power connection.
• Output Voltage: 12VDC provides reliable and stable power for all connected devices.
• Output Current: 20A delivers sufficient power to run multiple devices effectively.
• Fuses: 18 individual fuses offer protection against over-voltage and over-current, ensuring the safety of your devices.
• Status LEDs: 18 individual status LEDs provide real-time monitoring of each channel’s power status.
• Current Limitation: Each output is limited to 1.1A max to prevent overload on individual channels.
• Package Includes: 1 Power supply, power cord, instruction manual, wall mounting hardware, 2 keys for added convenience.
• Certifications: CE, FCC, RoHs ensure compliance with safety and environmental standards.

SecurityTronix ST-PBX18-20A-PTC Detailed Specifications
