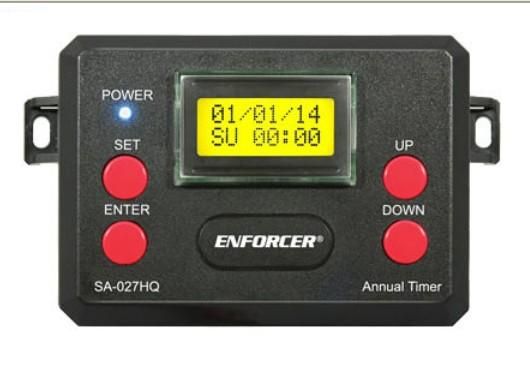

Seco-Larm SA-027HQ Programmable Annual Timer with Housing

The Seco-Larm SA-027HQ Programmable Annual Timer with Housing is the ideal solution for precise and reliable control of electrical devices. This versatile timer offers robust features such as a durable housing, dual relay outputs, and a comprehensive programmable scheduling system that allows flexibility for daily, weekly, or yearly events. With the ability to customize operations, manage holidays, and ensure data integrity during power failures, it’s designed for both convenience and performance.

Seco-Larm SA-027HQ Timer Features

• Dual Relay Outputs: Two N.O. or N.C. Form C relays rated at 10A@120VAC/28VDC allow for versatile control of connected devices.
• Extensive Programming Capability: Each relay can be programmed for 50 unique events, providing a total of 100 programmable events to cater to various schedules.
• Flexible Event Scheduling: Events can be set on a weekly, daily, or hourly basis, accommodating a full year of operations for different requirements.
• Manual Relay Control: Operate relays manually without needing to program any events, ensuring immediate functionality when needed.
• Egress Inputs: One input per relay (2 total) for added convenience and safety management.
• Block Programming Feature: Allows for easy repeating of events, simplifying complex scheduling needs.
• First-Person-In Function: Interrupts timer operation upon entry, enhancing security protocols.
• Customizable Output Options: Event outputs can be toggled, set to ON, OFF, shunt, or programmed for momentary use (1~99 seconds).
• Holidays Programming: Support for up to 10 programmable holidays enables users to adapt easily to seasonal changes.
• Password Protection: Programming is secured with a password to restrict unauthorized access, ensuring reliability.
• Tandem Operation Mode: Both relays can function simultaneously for applications requiring dual control.
• Data Protection: EEPROM memory secures programmed settings against power failures, maintaining functionality.
• Built-in Battery Backup: Includes a clock backup battery and charger for external battery options, preserving clock settings and operations.
• Leap Year Adjustment: Automatically compensates for leap years, simplifying annual scheduling.
• Standard and Daylight Saving Time Support: Easily switch between time modes to reflect seasonal changes.
• User-Friendly Display: Alphanumeric backlit LCD display simplifies programming and operation, enhancing user experience.

Seco-Larm SA-027HQ Detailed Specifications
