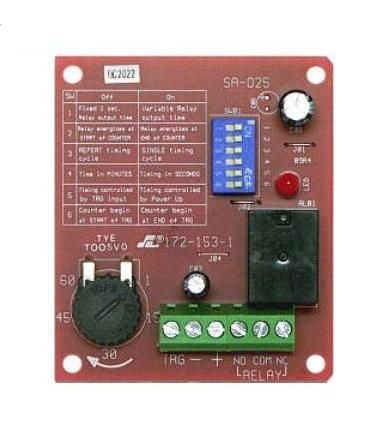

Seco-Larm SA-025Q Multi-Purpose Programmable Timer

The ENFORCER® SA-025Q Multi-Purpose Programmable Timer is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells. DIP switches for programming and autosensing of input voltage make installation easy.

Seco-Larm SA-025Q Timer Features

• Adjustable Timer: Timer can be set from 1 second to 60 minutes, providing versatile timing options for different applications.
• Versatile Triggering: Can be triggered by positive voltage (+DC), or closure or opening of dry contact, enhancing compatibility with diverse devices.
• Flexible Relay Programming: Relay can be programmed to activate at the start or at the end of the timing cycle, allowing for tailored operation based on specific needs.
• End Cycle Activation: Relay can also be set to activate for one second at the end of the timing cycle, providing a clear signal or trigger when timing is complete.
• Pulse Activation: Programmable for pulse (flash) activation, which is useful for applications requiring momentary signals.
• Manual Reset Function: Built-in reset function enables manual resetting of the timing cycle, ensuring easy adjustments during use.
• Form C Relay: Form C relay with contacts rated at 8A@120VAC/24VDC ensures robust performance in various conditions.
• LED Indicator: LED indicates relay is energized, allowing users to easily monitor operational status at a glance.
• Auto Sensing Operation: 12VDC/24VDC Operation (auto sensing) eliminates the need for manual voltage setting, simplifying installation.
• Low Current Consumption: Current draw of 1mA (standby) and 50mA (active) ensures energy efficiency, reducing operational costs.
• Compact Size: Board measures 27/8" x 21/2" (73x63 mm), making it easy to integrate into existing setups without taking up too much space.
• DIP Switch Programming: Functions programmed via DIP switches – no jumpers to cut, facilitating quick and straightforward setup.

Seco-Larm SA-025Q Detailed Specifications
