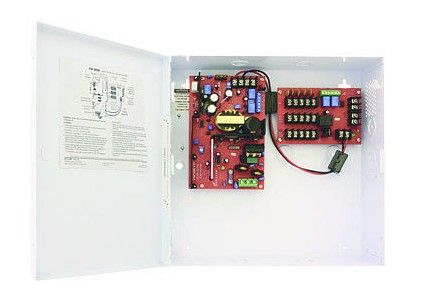

Seco-Larm Seco-Larm EAP-5D5Q 5 Output Power Supply 5A@12VD 2.5A@24VDC

The EAP-5D5Q from Seco-Larm power supply is specifically designed for an access control system's electronic locks and accessories. These power supplies centralize the power sources of access control equipment. They include two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signalled by flashing red LED and with auto-recovery once output short or overload is removed.

Seco-Larm EAP-5D5Q Features

• AC power failure supervision relay: Alerts users to AC power issues, ensuring continuous operation of connected devices.
• Battery failure supervision relay: Monitors battery status, providing peace of mind that back-up systems are operational.
• Selectable 2.2K? End-of-Line (EOL) resistor: Customizes relay supervision setups via DIP switch for optimized performance.
• Selectable delay timer: Offers flexibility with options for 5 seconds, 5 minutes, or 5 hours delay before AC failure response, allowing for tailored monitoring.
• Board designed with overload and short-circuit protection: Enhances safety with automatic shutdown and LED indicators, preventing damage from electrical faults.
• Over-current fuse-protected AC input: Safeguards the power input against excess current, ensuring system longevity.
• Built-in back-up battery charger: Supports optional batteries for uninterrupted power during outages.
• Automatic switch to back-up battery: Ensures continuous operation without user intervention when AC power fails.
• Individual LED status indicators: Provides real-time visibility of AC input and DC output status, facilitating easy monitoring.
