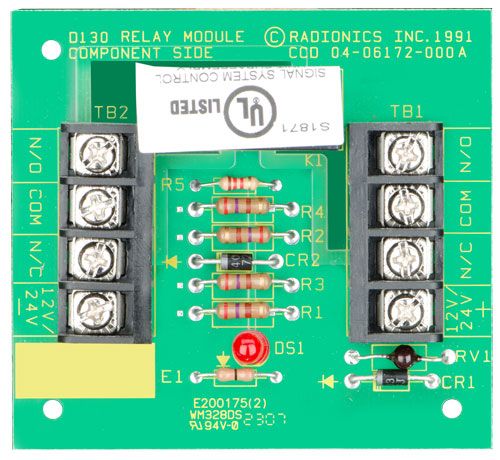

Radionix by Bosch D130 Auxiliary Relay Module 5amp
SKU
D130
Model No
D130
$33.90
Product Highlights
- 12 VDC or 24 VDC relay
- Allows switching of current or voltage
- Two non-latching Form C dry contact outputs
- Red LED shows coil is energized
- Mounts in control panel enclosure
Speak to an expert
Bosch D130 Auxiliary Relay Module Features
The D130 Auxiliary Relay Module can be used with all Bosch Security Systems control panels. The relay module consists of a 12 VDC or 24 VDC relay. This device allows the system to handle larger amounts of current or different voltages that are beyond the control panel's auxiliary power rating, or the rating of modules such as the D8129 OctoRelay.
Features
- 12 VDC or 24 VDC relay: Provides flexibility in voltage use, making it compatible with various systems.
- Allows switching of current or voltage: Enables better management of electrical loads, ensuring system reliability.
- Two non-latching Form C dry contact outputs: Facilitates versatile connection options for various devices and systems.
- Red LED shows coil is energized: Offers a visual indicator for ease of troubleshooting and maintenance.
- Mounts in control panel enclosure: Ensures a neat installation and maximizes space efficiency.
Bosch D130 Detailed Specifications
| Relay Voltage | 12 VDC or 24 VDC |
| Contact Type | Non-latching Form C |
| Number of Outputs | Two |
| LED Indicator | Yes (Red) |
| Mounting Type | Control panel enclosure |
SKU  | D130 |
|---|---|
| Manufacturer | Bosch |
| Operating Voltage | 12VDC, 24VDC |
| Contact Rating | 5 Amp |
| UL Listed | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
D130-Specsheet D130-Installation-Manual
