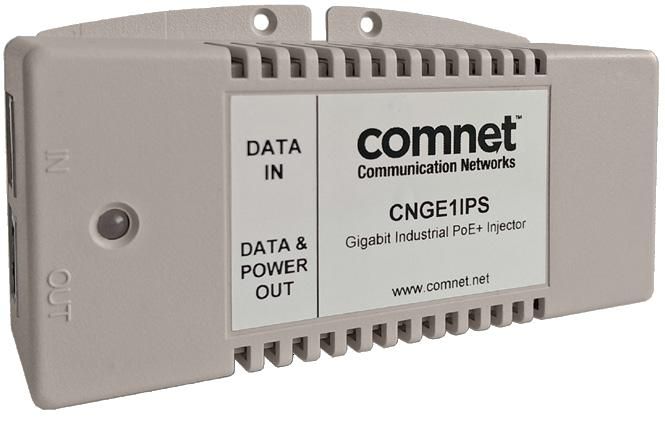

Comnet CNGE1IPS Industrial Gigabit Power over Ethernet Midspan Injector

The ComNet™ CNGE1IPS is an industrial power over Ethernet (PoE+) midspan injection module that injects 56 VDC at 0.625 amperes to any network cable. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. The CNGE1IPS is fully compliant with the requirements of IEEE 802.3at for Power Sourcing Equipment (PSE), and features auto detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 30 watts. The unit provides AC line and powered device over-voltage and short circuit protection. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CNGE1IPS is a true plug-and-play product requiring no user configuration or other set-up.

Features

• Easily combines operating power and 10/100/1000T(X) Ethernet data to one network cable
• Fully Compliant with IEEE Standard 802.3at for Power Sourcing Equipment
• Housed in a compact, rugged, light-weight package
• Internal 90 to 264 VAC power supply provides short circuit protection for powered devices
• Designed for deployment in industrial -25º to +75º C operating environments
• Rugged, compact package for installation where space may be limited
• Ease of installation & true plug-and-play operation: no user configuration or settings required
• UL, CSA, FCC, CE, EN60950-1, and RoHS Approved
• Unit can be wall mounted or DIN rail mounted using the included adaptor kit
